ELCO

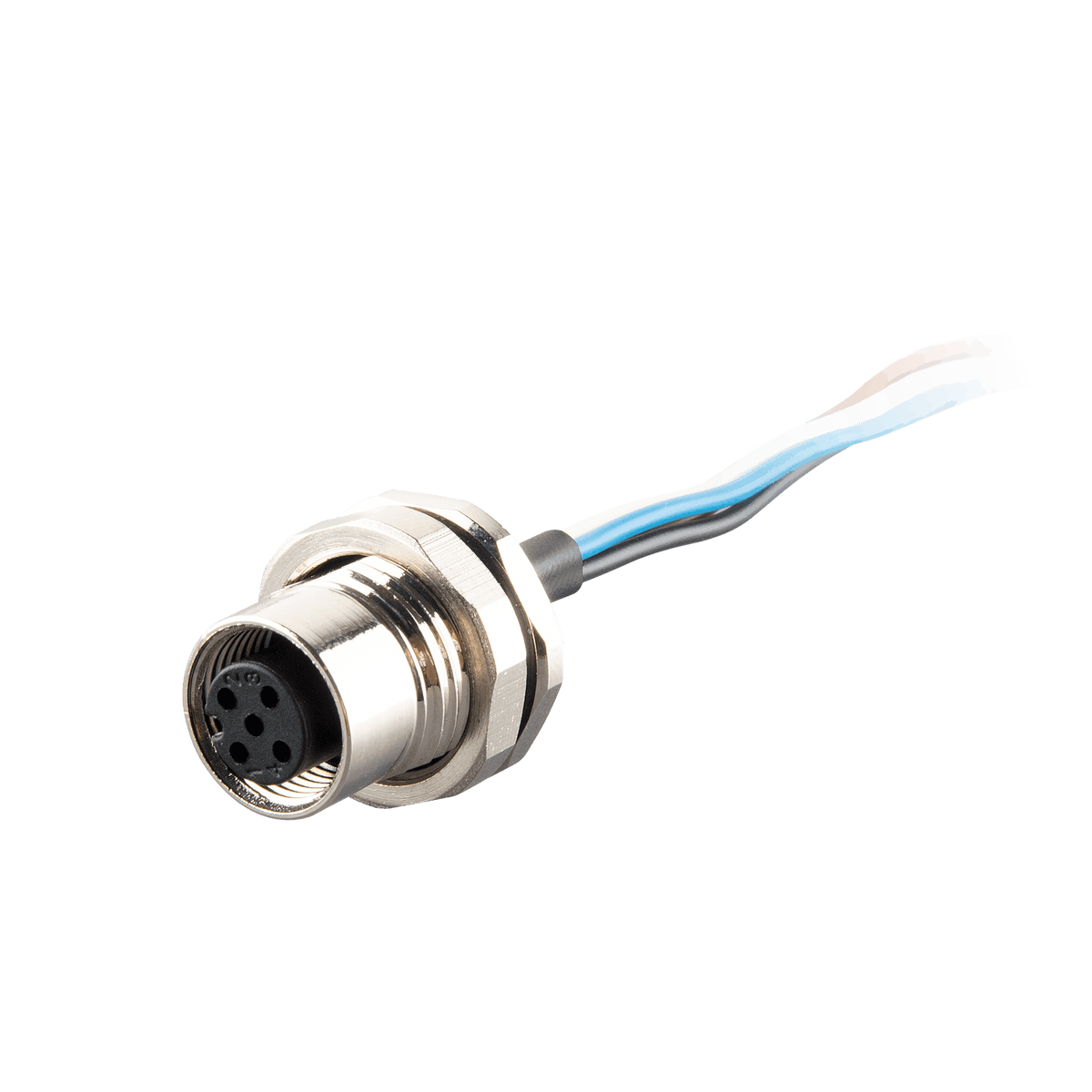

FO12.4-1/M16 Flange-Mount Bulkhead Connector
$18.27
- Connector
- M12
- Coding
- A-code
- Cable length
- 1 m
- IP rating
- IP67
Product information
Technical details
Flange-Mount Bulkhead Connector, with cable, m12 A-code 4-pin Straight Female, m16 Hole dimension, Rear mount, with PVC Cable, 1 m
Specifications
MPN FO12.4-1/M16
| Cable jacket material | Without Cable jacket |
|---|---|
| Hole dimensions | M16 |
| Coating contact material | Gold-plated copper |
| Rated current | 4 A |
| Drag chain | Fixed installation |
| Shielded/Unshielded | NO |
| Material contact | TPU |
| Rated voltage | 250 V AC/DC |
| Cable jacket color | Without Cable jacket |
| Wire insulation material | PVC |
| Wire insulation color | BN,WH,BU,BK |
| Cable length | 1 m |
| IP rating | IP67 |
| Nut/bolt material | Nickel plated brass |
| Installation methods | Rear mount |
| Wire cross-section | Max. 1.0 mm² |
| Product type | Flange-Mount Bulkhead Connector |
| Termination Type | With cable |
| Head 1 Type | M12 |
| Head 1 Number of contacts | 4 |
| Head 1 Coding | A-code |
