ELCO

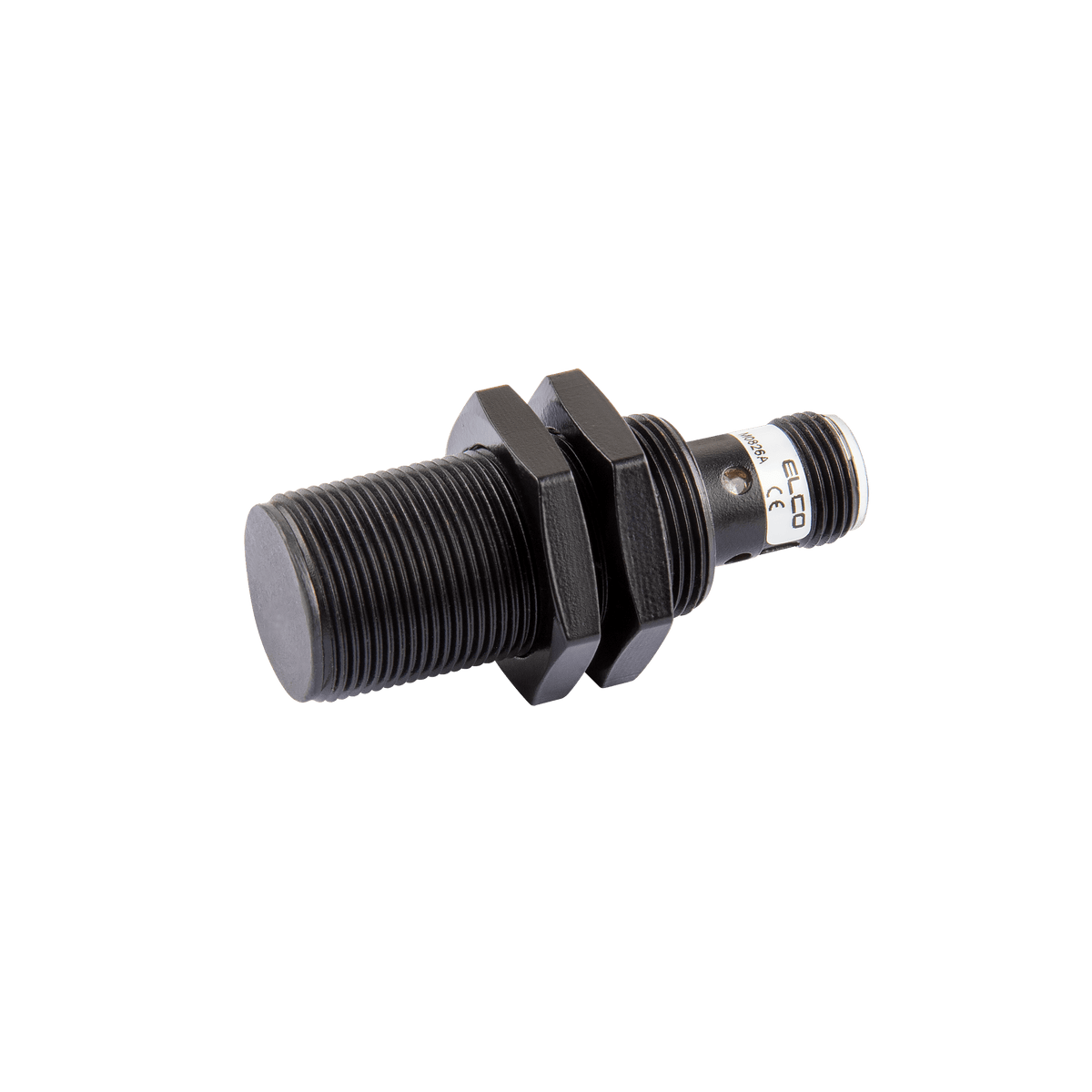

FI8A-TM18-CN6L-Q12 Inductive Sensor
$127.18
- Sensing range
- 8 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, PTFE Coating Anti-interference Series, Threaded cylindrical housing M18, Switching distance 8 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NC, M12 connector
Specifications
MPN FI8A-TM18-CN6L-Q12
| Sensing range | 8 mm |
|---|---|
| Connection | M12, 4-pin |
| Inductive surface coating | Teflon |
| Load current | ≤ 200 mA |
| Housing coating | Teflon |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 400 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| Product size | M18 x 52 mm |
| Output type | NPN |
| External dimensions | M18 x 1 |
| Mounting | Flush |
| IP rating | IP67 |
