ELCO

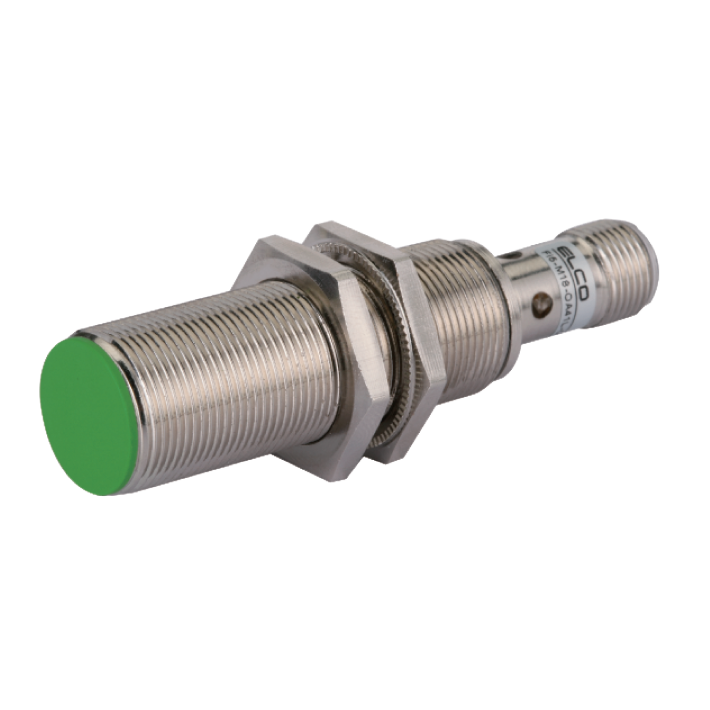

FI8-M18-OSA3L-Q12 Inductive Sensor
$36.57
- Supply voltage
- 20 ... 250 V AC
- IP rating
- IP67
Product information
Technical details
Inductive sensor, Threaded cylindrical housing M18, Switching distance 8mm, flush, IP67, -25...70°C, 2-wire AC, M12 connector
Specifications
MPN FI8-M18-OSA3L-Q12
| Series | M Series |
|---|---|
| Design | Thread design M18 |
| Switching distance | 8 mm |
| Installation type | flush |
| Output | Two-wire NO contact |
| Switching frequency | 40 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 20 ... 250 V AC |
| Dimensions | M18 x 75 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
