ELCO

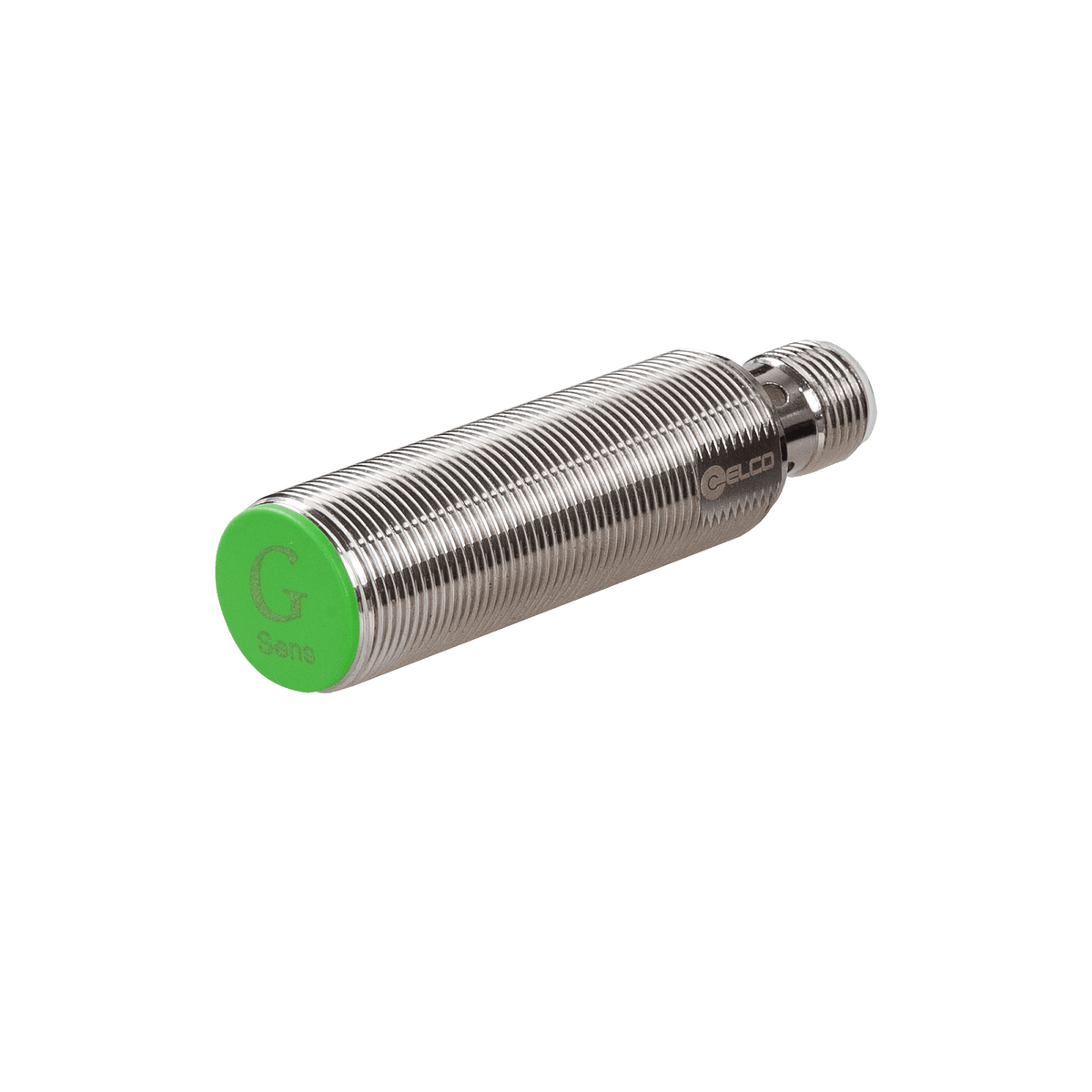

FI8-G18-OD6L-Q12 Inductive Sensor
$63.31
- Sensing range
- 8 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M18, Switching distance 8 mm, Flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, 2 - wire DC, NO, M12 connector
Specifications
MPN FI8-G18-OD6L-Q12
| IP rating | IP68 |
|---|---|
| Ambient temperature | -30 … +85 ℃ |
| Sensing range | 8 mm |
| Connection | M12, 4-pin |
| Mounting | Flush |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 500 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 100 mA |
| Output status | NO |
| Output type | DC |
| External dimensions | M18 x 1 |
| Product size | M18 x 65 mm |
