ELCO

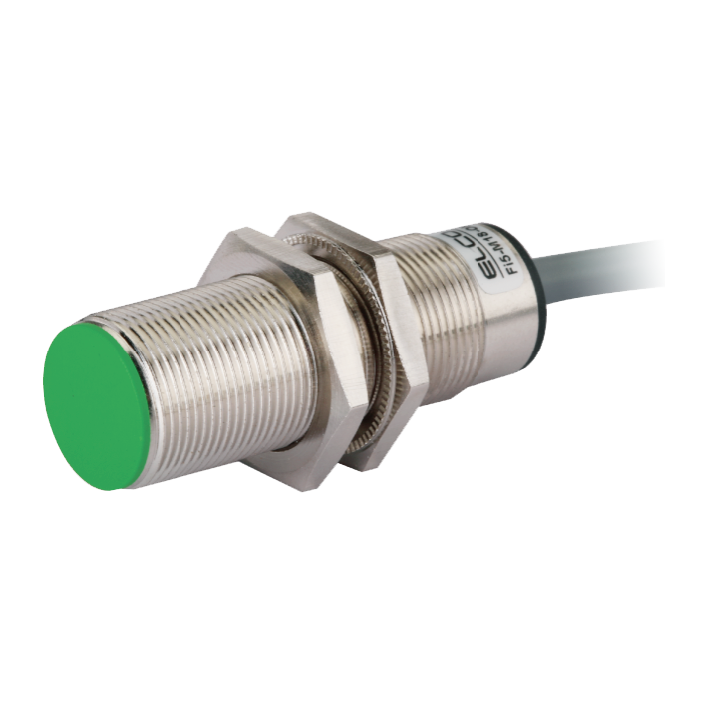

FI5H-M18-ON6L Inductive Sensor
$83.39
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M18, Wide temperature series, Switching distance 5mm, flush, IP67, -30...100°C, NPN NO, Cable 2m
Specifications
MPN FI5H-M18-ON6L
| Series | H Series |
|---|---|
| Feature | Extended temperature range |
| Design | Thread design M18 |
| Switching distance | 5 mm |
| Installation type | flush |
| Output | NPN NO contact |
| Switching frequency | 800 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M18 x 53 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -30 ... +100 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
