ELCO
FI5A-M18-CN6L Inductive Sensor
$84.79
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details

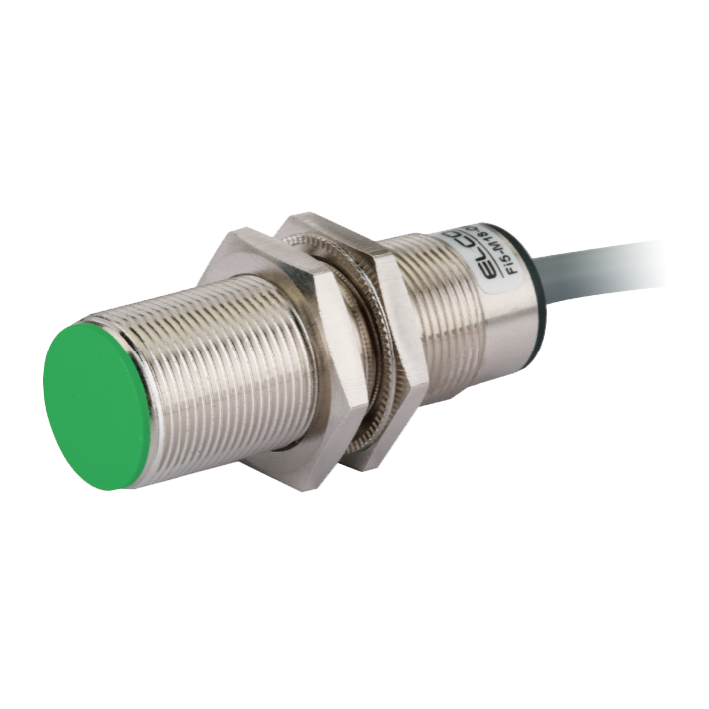

Inductive sensor, Threaded cylindrical housing M18, Magnetic field immune, Switching distance 5mm, flush, IP67, -25...70°C, NPN NC, Cable 2m
Specifications
MPN FI5A-M18-CN6L
| Series | A Series |
|---|---|
| Feature | Magnetic field resistant |
| Design | Thread design M18 |
| Switching distance | 5 mm |
| Installation type | flush |
| Output | NPN normally closed contact |
| Switching frequency | 1000 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M18 x 53 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
