ELCO

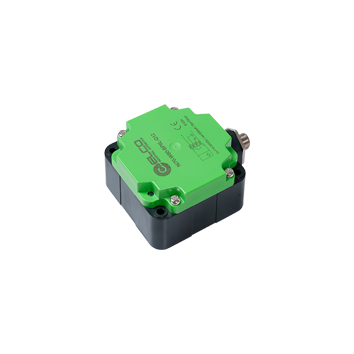

FI50-W80-VA41L-Q12 Inductive Sensor
$174.39
- Sensing range
- 50 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W80, Switching distance 50 mm, Flush, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, 2 x 2 - wire AC/DC, M12 connector
Specifications
MPN FI50-W80-VA41L-Q12
| Connection | M12, 4-pin |
|---|---|
| Sensing range | 50 mm |
| Housing material | PA |
| Sensing surface material | PA |
| Switching frequency | 20 Hz |
| Supply voltage | 20 ... 250 V AC/DC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NO + NC |
| Output type | DC / AC |
| External dimensions | Square |
| Mounting | Flush |
| Product size | 80 x 80 x 40 mm |
| IP rating | IP67 |
