ELCO

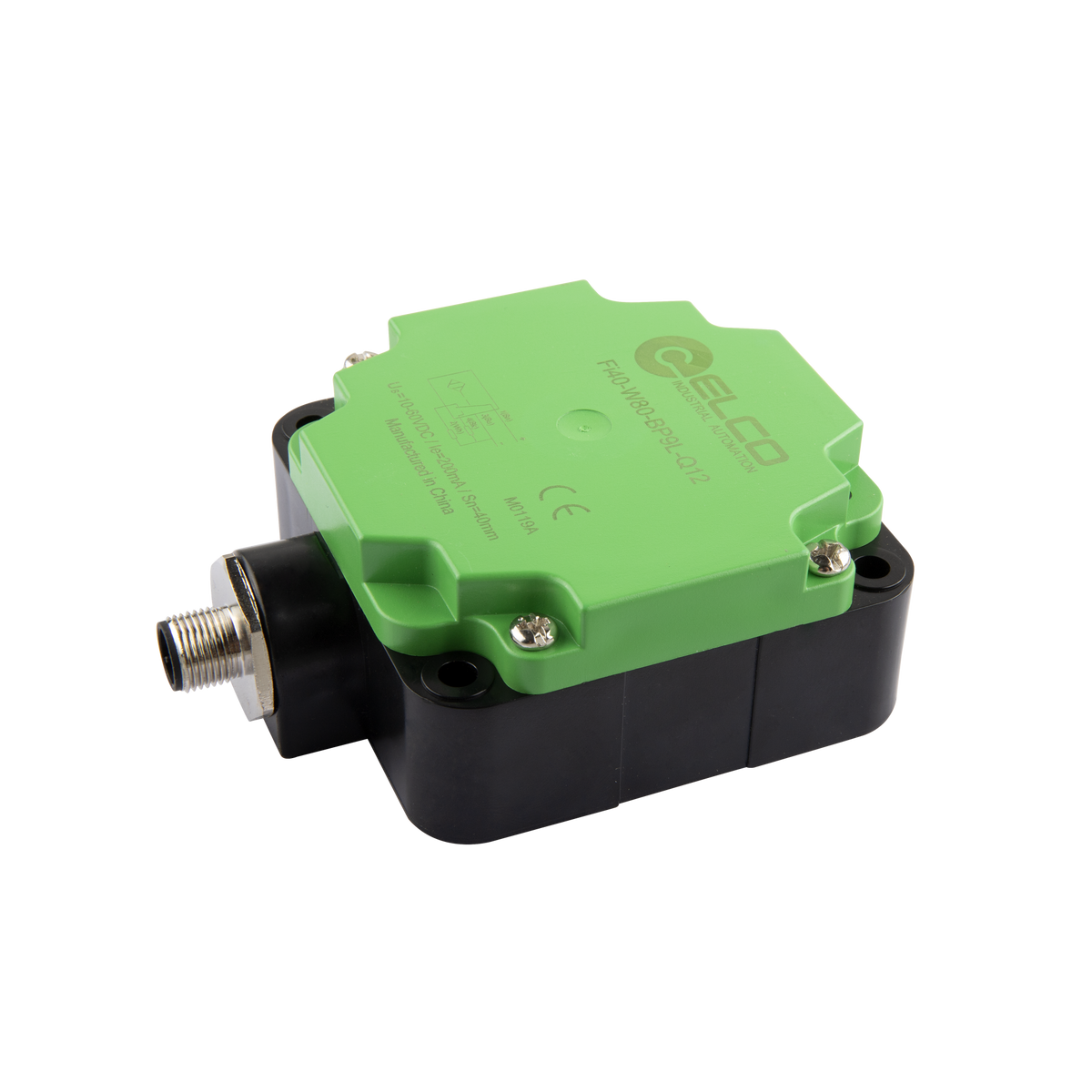

FI50-W80-OD9L-Q12 Inductive Sensor
$160.70
- Supply voltage
- 10 ... 60 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Rectangular housing W80, Switching distance 50mm, flush, IP65, -25...70°C, 10-60VDC, 2-wire , M12 connector
Specifications
MPN FI50-W80-OD9L-Q12
| Series | W Series |
|---|---|
| Design | Cuboid design W80 |
| Switching distance | 50 mm |
| Installation type | flush |
| Output | Two-wire NO contact |
| Switching frequency | 50 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 10 ... 60 V DC |
| Dimensions | 80 x 80 x 40 mm |
| Housing material | Plastic (PBT) |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
