ELCO

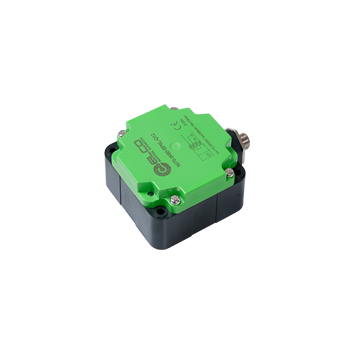

FI50-W80-OD6L-Q12 Inductive Sensor
$160.70
- Sensing range
- 50 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W80, Switching distance 50 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, 10-30 V DC, 2 - wire DC, NO , M12 connector
Specifications
MPN FI50-W80-OD6L-Q12
| Connection | M12, 4-pin |
|---|---|
| Mounting | Flush |
| External dimensions | Square |
| Sensing surface material | PA |
| Output status | NO |
| Sensing range | 50 mm |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | PA |
| Switching frequency | 50 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 100 mA |
| Output type | DC |
| Product size | 80 x 80 x 40 mm |
| IP rating | IP67 |
