ELCO

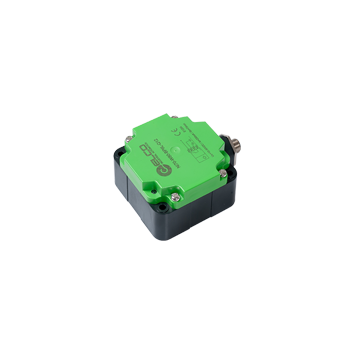

FI50-W80-CD6L-Q12/TB40 Inductive Sensor
$241.91
- Sensing range
- 40 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing W80, Switching distance 50 mm, Flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, 2 - wire DC, M12 connector
Specifications
MPN FI50-W80-CD6L-Q12/TB40
| Connection | M12, 4-pin |
|---|---|
| IP rating | IP67 |
| Sensing surface material | PA |
| Output type | DC |
| Supply voltage | 10 ... 30 V DC |
| Sensing range | 40 mm |
| Output status | NC |
| External dimensions | Square |
| Housing material | PA |
| Product size | 80 x 80 x 40 mm |
| Switching frequency | 50 Hz |
| Ambient temperature | -40 … +70 ℃ |
| Load current | ≤ 100 mA |
| Mounting | Flush |
