ELCO

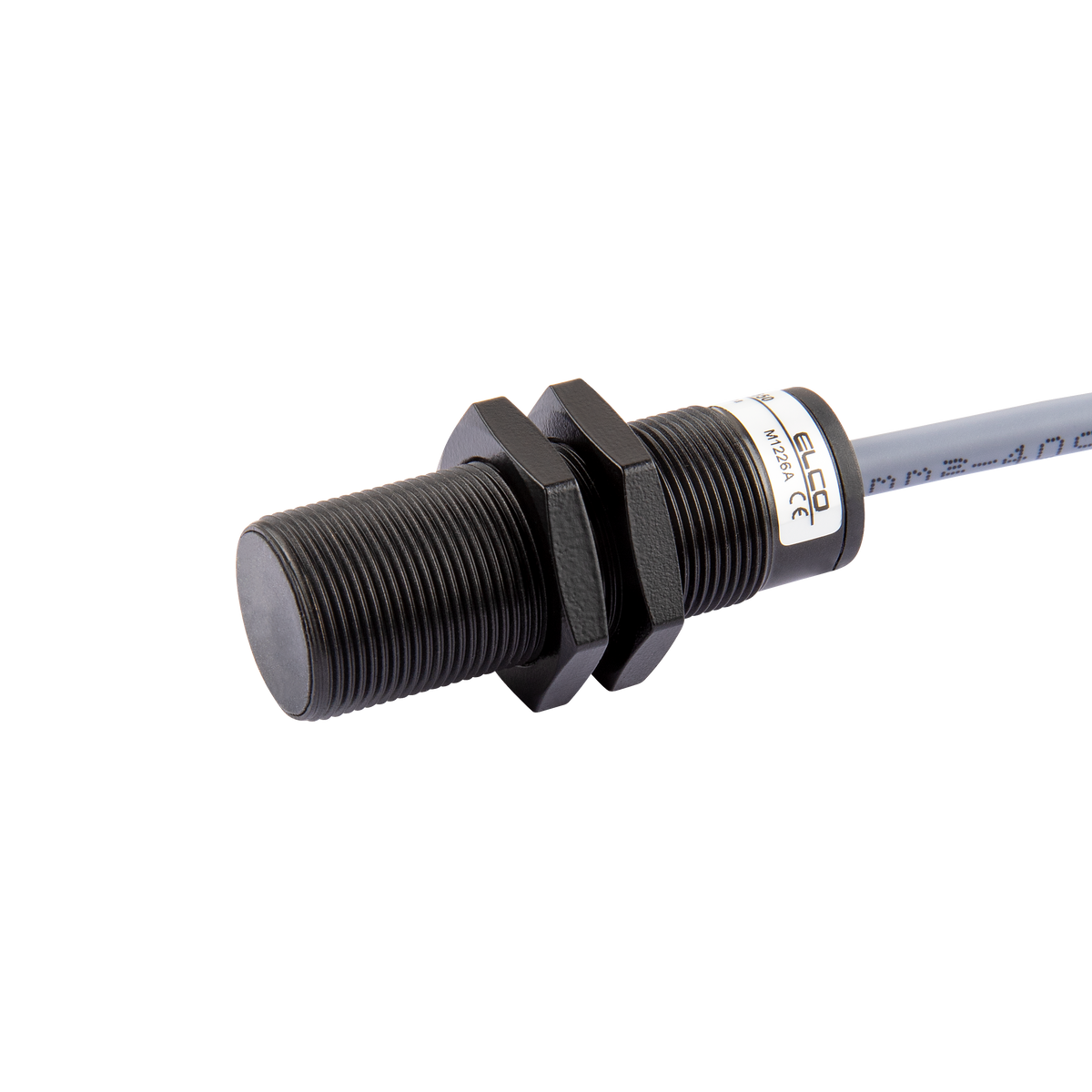

FI5-TM18-CN6L Inductive Sensor
$99.22
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M18, PTFE-coated , Switching distance 5mm, flush, IP67, -25...70°C, NPN NC, 2m cable
Specifications
MPN FI5-TM18-CN6L
| Series | TM Series |
|---|---|
| Feature | Non-stick coated |
| Design | Thread design M18 |
| Switching distance | 5 mm |
| Installation type | flush |
| Output | NPN normally closed contact |
| Switching frequency | 800 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M18 x 53 mm |
| Housing material | PTFE-coated |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
