ELCO

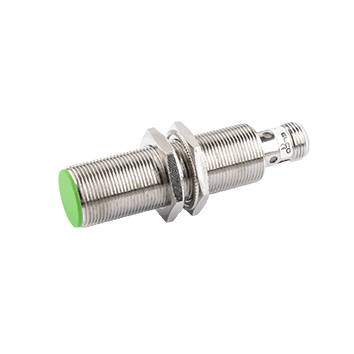

FI5-M18E-BP6L-Q12 Inductive Sensor
$48.44
- Sensing range
- 5 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical long housing M18, Switching distance 5 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, PNP NO + NC, M12 connector
Specifications
MPN FI5-M18E-BP6L-Q12
| Output type | PNP |
|---|---|
| Sensing range | 5 mm |
| Connection | M12, 4-pin |
| IP rating | IP67 |
| Ambient temperature | -25 … +70 ℃ |
| Mounting | Flush |
| Product size | M18 x 62 mm |
| Output status | NO + NC |
| Sensing surface material | PBT |
| Supply voltage | 10 ... 30 V DC |
| Housing material | Nickel-plated brass |
| Switching frequency | 800 Hz |
| Load current | ≤ 200 mA |
| External dimensions | M18 x 1 |
