ELCO

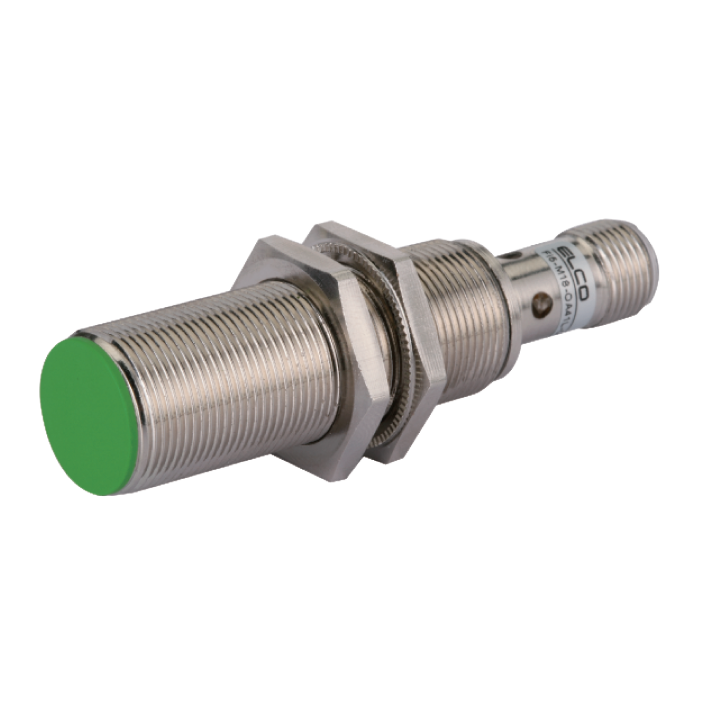

FI5-KM18-OA41L-Q12/T120 Inductive Sensor
$109.79
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical stainless steel housing M18, Switching distance 5mm, flush, IP67, -25...120°C, 2- wire AC/DC, M12 Connector
Specifications
MPN FI5-KM18-OA41L-Q12/T120
| Series | T120 series |
|---|---|
| Feature | High temperature resistant (up to +120 °C) |
| Design | Thread design M18 |
| Switching distance | 5 mm |
| Installation type | flush |
| Output | Two-wire NO contact |
| Switching frequency | 40 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 20 ... 250 V AC/DC |
| Dimensions | M18 x 75 mm |
| Housing material | Stainless steel |
| Ambient temperature | -25 ... +120 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
