ELCO

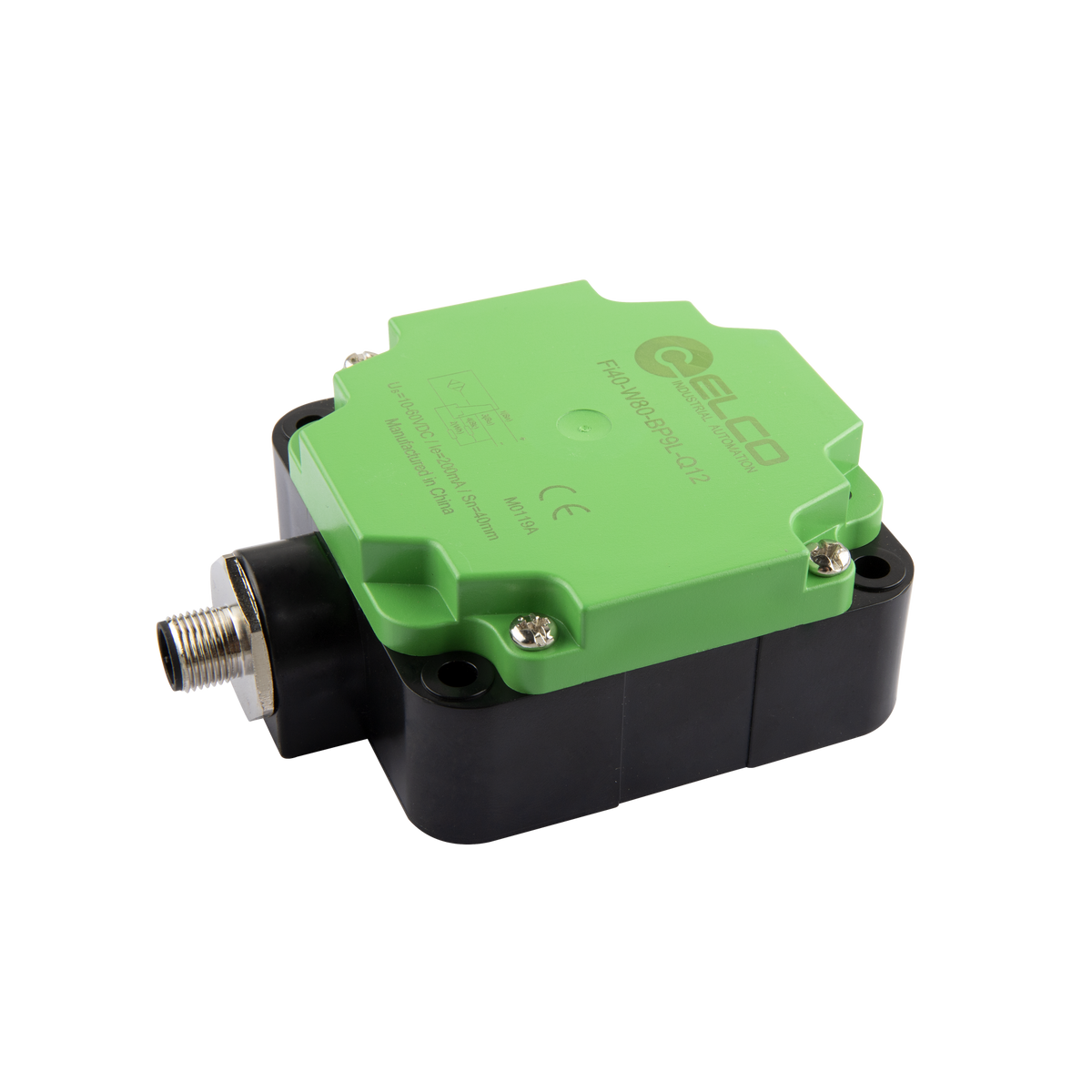

FI40-W80-CA41L-Q12 Inductive Sensor
$166.35
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Rectangular housing W80, Switching distance 40mm, flush, IP65, -25...70°C, 20-250VAC/DC, 2-wire AC/DC , M12 connector
Specifications
MPN FI40-W80-CA41L-Q12
| Series | W Series |
|---|---|
| Design | Cuboid design W80 |
| Switching distance | 40 mm |
| Installation type | flush |
| Output | Two-wire normally closed contact |
| Switching frequency | 20 Hz |
| Connection type | M12 plug, 2-pin |
| Operating voltage | 20 ... 250 V AC/DC |
| Dimensions | 80 x 80 x 40 mm |
| Housing material | Plastic (PBT) |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
