ELCO

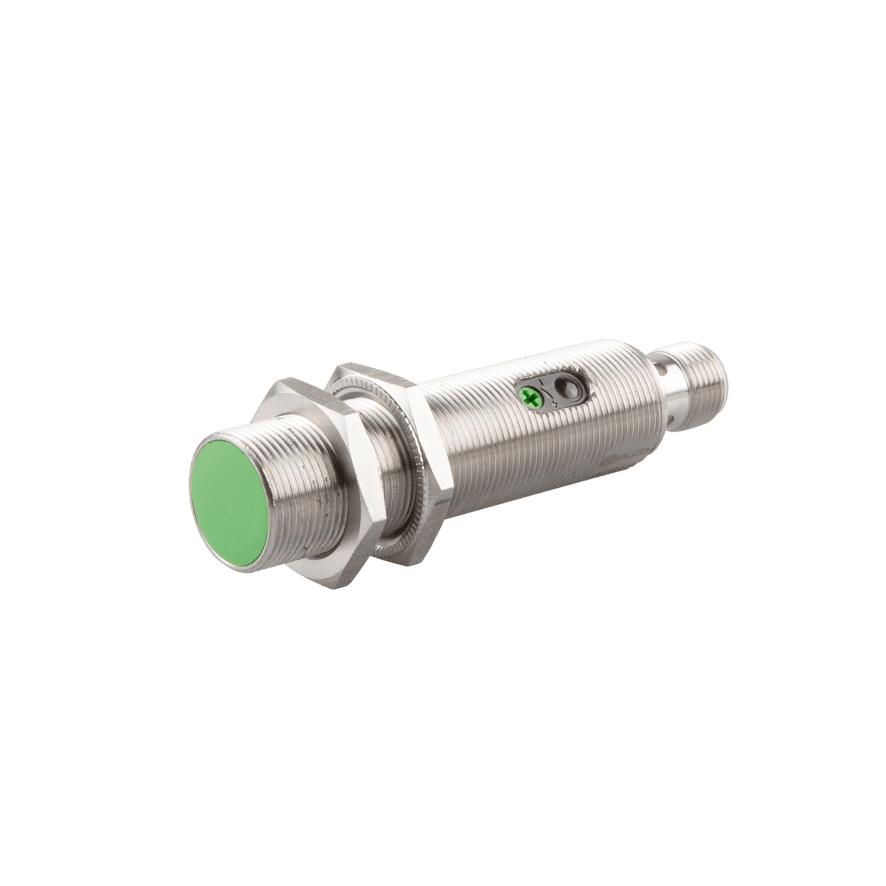

FI3D-KM18-CN6-Q12 Inductive Sensor
$185.91
- Sensing range
- 3 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensors, High pressure resistant type, Stainless steel threaded cylindrical housing M18, High pressure up to 500 bar, Switching distance 3 mm, Flush, IP68, -25 ... 70 °C, 10 ... 30 V DC, NPN NC, M12 connector
Specifications
MPN FI3D-KM18-CN6-Q12
| Connection | M12, 4-pin |
|---|---|
| Sensing surface material | Ceramics |
| IP rating | IP68 |
| Sensing range | 3 mm |
| Output status | NC |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| External dimensions | M18 x 1 |
| Output type | NPN |
| Housing material | Stainless steel |
| Mounting | Flush |
| Special performance | Pressure range MAX 500bar |
| Switching frequency | 800 Hz |
| Product size | M18 x 58 mm |
| Ambient temperature | -25 … +70 ℃ |
