ELCO

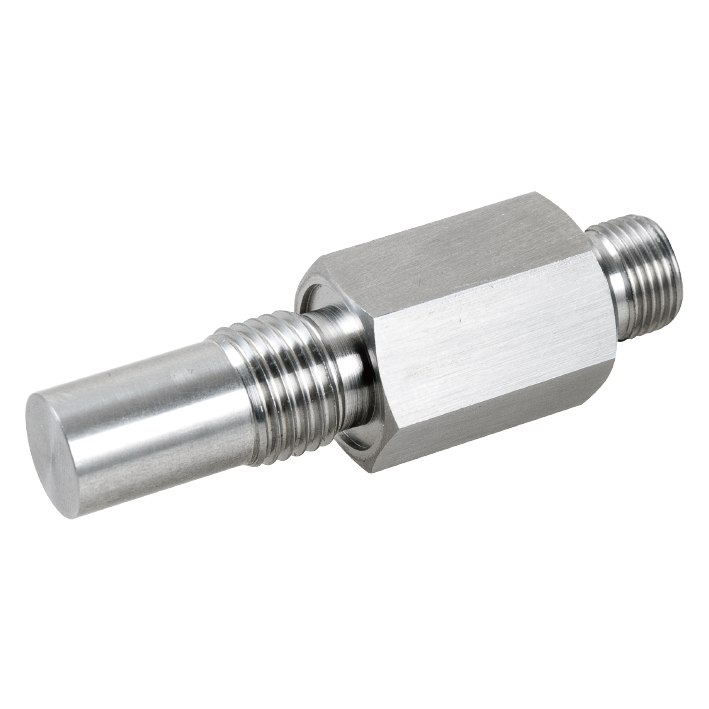

FI2D-KM14H1-ON6-Q12 Inductive Sensor
$200.96
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M14, High pressure up to 500 bar, Switching distance 2mm, flush, IP68, -25...70°C, NPN NO, M12 connector
Specifications
MPN FI2D-KM14H1-ON6-Q12
| Series | D Series |
|---|---|
| Feature | High pressure resistant |
| Design | Thread design M14 |
| Switching distance | 2 mm |
| Installation type | flush |
| Output | NPN NO contact |
| Switching frequency | 1000 Hz |
| Connection type | M12 plug, 3-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M12 x 66 mm |
| Housing material | Stainless steel |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP68 |
| Certificates | CE, RoHS, REACH |
