ELCO

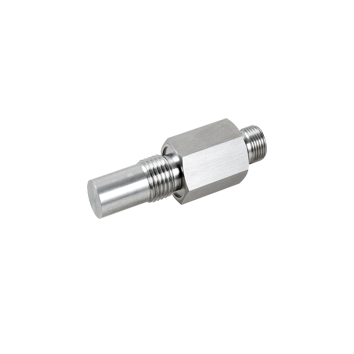

FI2D-AM14H1-OP6-Q12 Inductive Sensor
$238.65
- Sensing range
- 2 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP68
Product information
Technical details
Inductive Sensors, High pressure resistant type, Full metal encapsulated stainless steel cylindrical short housing M14, High pressure up to 500 bar, Switching distance 2 mm, Flush, IP68, -25 ... 70 °C, 10 ... 30 V DC, PNP NO, M12 connector
Specifications
MPN FI2D-AM14H1-OP6-Q12
| Sensing range | 2 mm |
|---|---|
| Connection | M12, 4-pin |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | Stainless steel |
| Sensing surface material | Ceramics |
| Special performance | Pressure range MAX 500bar |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 ... 30 V DC |
| Output status | NO |
| Load current | ≤ 200 mA |
| Output type | PNP |
| External dimensions | M14 x 1.5 |
| Mounting | Flush |
| Product size | M14 x 66 mm |
| IP rating | IP68 |
