ELCO

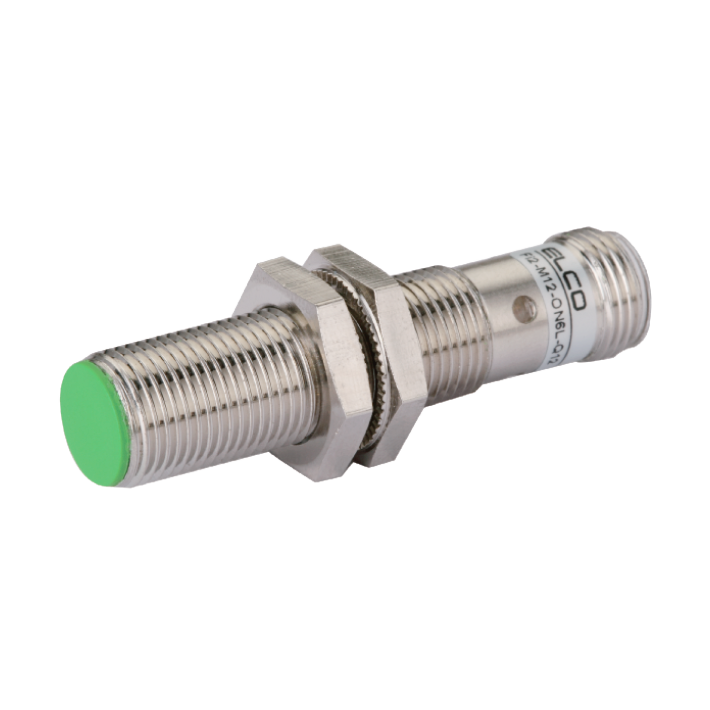

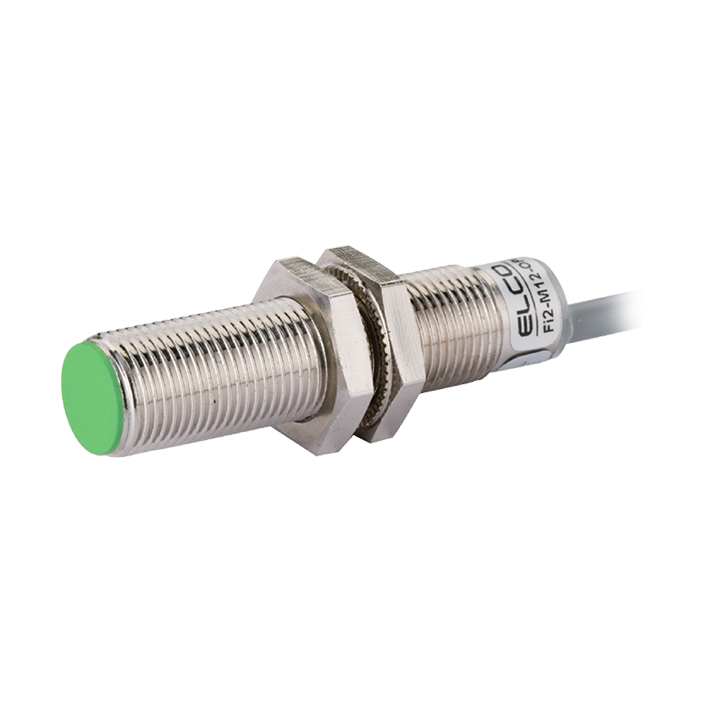

FI2A-M12-CP6L Inductive Sensor
$65.57
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive sensor, Threaded cylindrical housing M12, Magnetic field immune, Switching distance 2mm, flush, IP67, -25...70°C, PNP NC, Cable 2m
Specifications
MPN FI2A-M12-CP6L
| Series | A Series |
|---|---|
| Feature | Magnetic field resistant |
| Design | Thread design M12 |
| Switching distance | 2 mm |
| Installation type | flush |
| Output | PNP normally closed contact |
| Switching frequency | 1000 Hz |
| Connection type | PVC cable 2 m |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M12 x 51.9 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
