ELCO

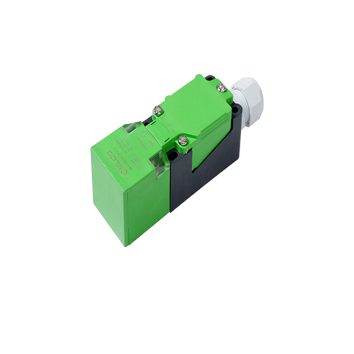

FI25-WL40-OA41L-Q Inductive Sensor
$121.13
- Sensing range
- 25 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing WL40, Switching distance 25 mm, Flush, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, 2 - wire AC/DC, NO, Screw terminals
Specifications
MPN FI25-WL40-OA41L-Q
| Supply voltage | 20 ... 250 V AC/DC |
|---|---|
| Output type | DC / AC |
| Connection | Terminal |
| IP rating | IP67 |
| Output status | NO |
| Sensing range | 25 mm |
| Housing material | PA |
| Sensing surface material | PA |
| Switching frequency | 20 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| External dimensions | Square |
| Mounting | Flush |
| Product size | 115 x 40 x 40 mm |
