ELCO

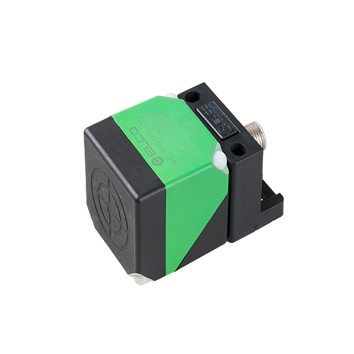

FI25-W40-BP6L-Q12 Inductive Sensor
$64.53
- Sensing range
- 25 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W40, Switching distance 25 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, PNP NO + NC, M12 connector
Specifications
MPN FI25-W40-BP6L-Q12
| Connection | M12, 4-pin |
|---|---|
| Sensing range | 25 mm |
| Ambient temperature | -25 … +70 ℃ |
| Housing material | PA |
| Output status | NO + NC |
| Sensing surface material | PA |
| Switching frequency | 100 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| External dimensions | Square |
| Output type | PNP |
| Mounting | Flush |
| Product size | 66 x 40 x 40 mm |
| IP rating | IP67 |
