ELCO

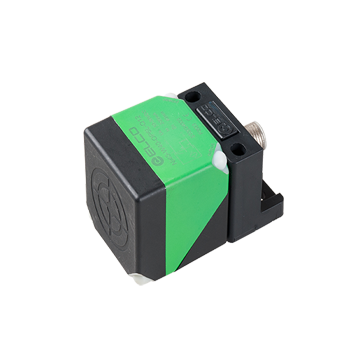

FI20-W40-CN6L-Q12 Inductive Sensor
$59.83
- Sensing range
- 20 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing W40, Switching distance 20 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NC, M12 connector
Specifications
MPN FI20-W40-CN6L-Q12
| Mounting | Flush |
|---|---|
| Output type | NPN |
| Product size | 66 x 40 x 40 mm |
| Sensing range | 20 mm |
| External dimensions | Square |
| Output status | NC |
| Load current | ≤ 200 mA |
| Switching frequency | 100 Hz |
| Connection | M12, 4-pin |
| IP rating | IP67 |
| Supply voltage | 10 ... 30 V DC |
| Housing material | PA |
| Sensing surface material | PA |
| Ambient temperature | -25 … +70 ℃ |
