ELCO

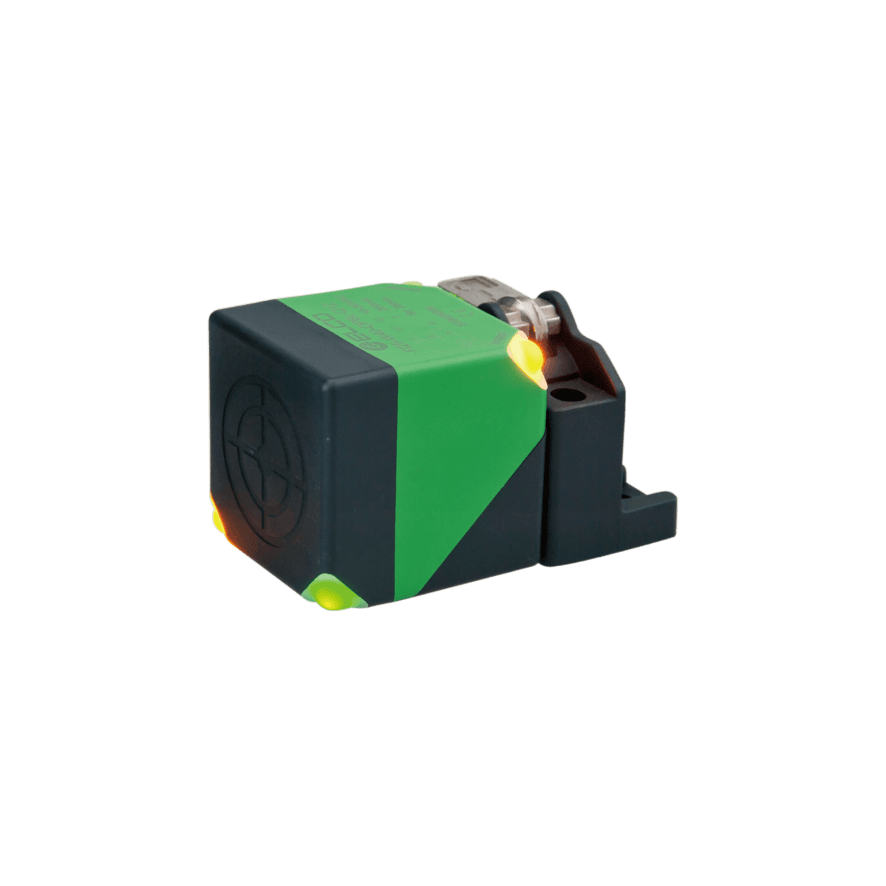

FI20-C40-NE-Q12 Inductive Sensor
$183.70
- Sensing range
- 20 mm
- Output type
- NAMUR
- Supply voltage
- 7.7 ... 9 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Intrinsically safe type, Rectangular housing W40, Switching distance 20 mm, Flush, IP67, -25 ... 70 °C, 7.7 ... 9 V DC, NAMUR NC, M12 connector
Specifications
MPN FI20-C40-NE-Q12
| External dimensions | Square |
|---|---|
| Connection | M12, 4-pin |
| Sensing surface material | PA |
| Output type | NAMUR |
| Sensing range | 20 mm |
| Ambient temperature | -25 … +70 ℃ |
| Output status | NC |
| Housing material | PA |
| Switching frequency | 150 Hz |
| Supply voltage | 7.7 ... 9 V DC |
| Mounting | Flush |
| Product size | 66 x 40 x 40 mm |
| IP rating | IP67 |
