ELCO

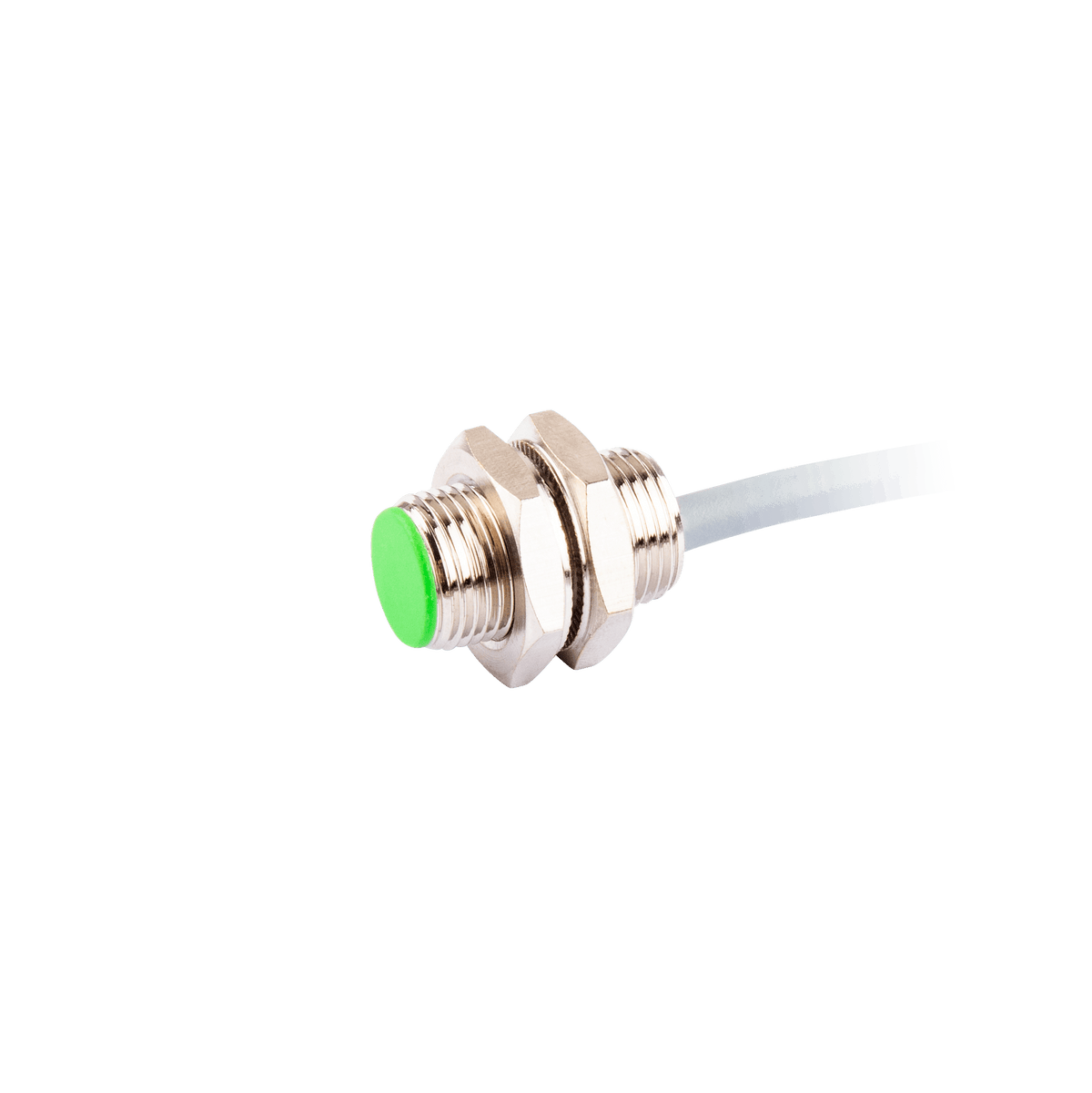

FI2-M12SS-ON6L Inductive Sensor
$61.57
- Cable length
- 2 m
- Sensing range
- 2 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, Small size type, Threaded cylindrical short housing M12, Switching distance 2 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO, 2 m cable
Specifications
MPN FI2-M12SS-ON6L
| Cable type | PVC |
|---|---|
| Cable length | 2 m |
| External dimensions | M12 x 1 |
| Supply voltage | 10 ... 30 V DC |
| Connection | Cable |
| Sensing range | 2 mm |
| IP rating | IP67 |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| Output status | NO |
| Output type | NPN |
| Mounting | Flush |
| Product size | M12 x 21.9 mm |
