ELCO

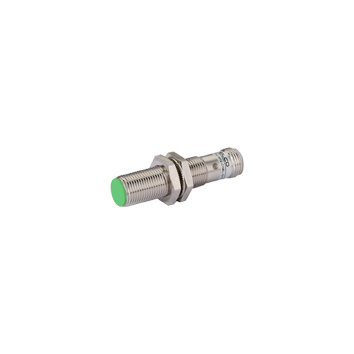

FI2-M12-ON6L-Q12/TB40 Inductive Sensor
$47.48
- Sensing range
- 2 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Threaded cylindrical housing M12, Switching distance 2 mm, Flush, IP67, -40 ... 70 °C, 10 ... 30 V DC, NPN NO, M12 connector
Specifications
MPN FI2-M12-ON6L-Q12/TB40
| External dimensions | M12 x 1 |
|---|---|
| Connection | M12, 4-pin |
| Sensing surface material | PBT |
| Output type | NPN |
| Output status | NO |
| Housing material | Nickel-plated brass |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -40 … +70 ℃ |
| Load current | ≤ 200 mA |
| Product size | M12 x 52 mm |
| IP rating | IP67 |
| Mounting | Flush |
| Sensing range | 2 mm |
