ELCO

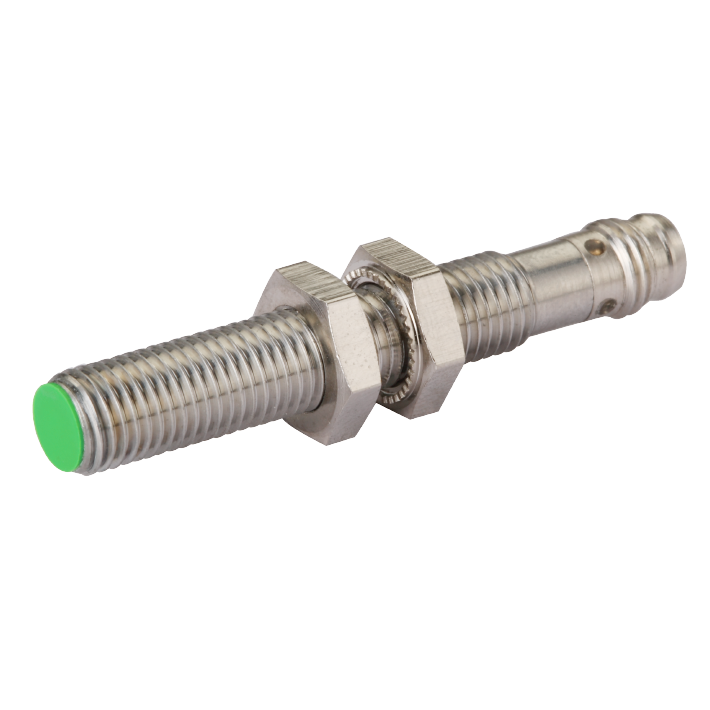

FI2-M08-OD6L-Q8 Inductive Sensor
$25.92
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive sensor, Threaded cylindrical housing M08, Switching distance 2mm, flush, IP68, -30...85°C, 2-wire DC, M8 connector
Specifications
MPN FI2-M08-OD6L-Q8
| Series | M Series |
|---|---|
| Design | Thread design M8 |
| Switching distance | 2 mm |
| Installation type | flush |
| Output | Two-wire NO contact |
| Switching frequency | 1000 Hz |
| Connection type | M8 plug, 3-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M8 x 55.4 mm |
| Housing material | Nickel-plated brass |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
