ELCO

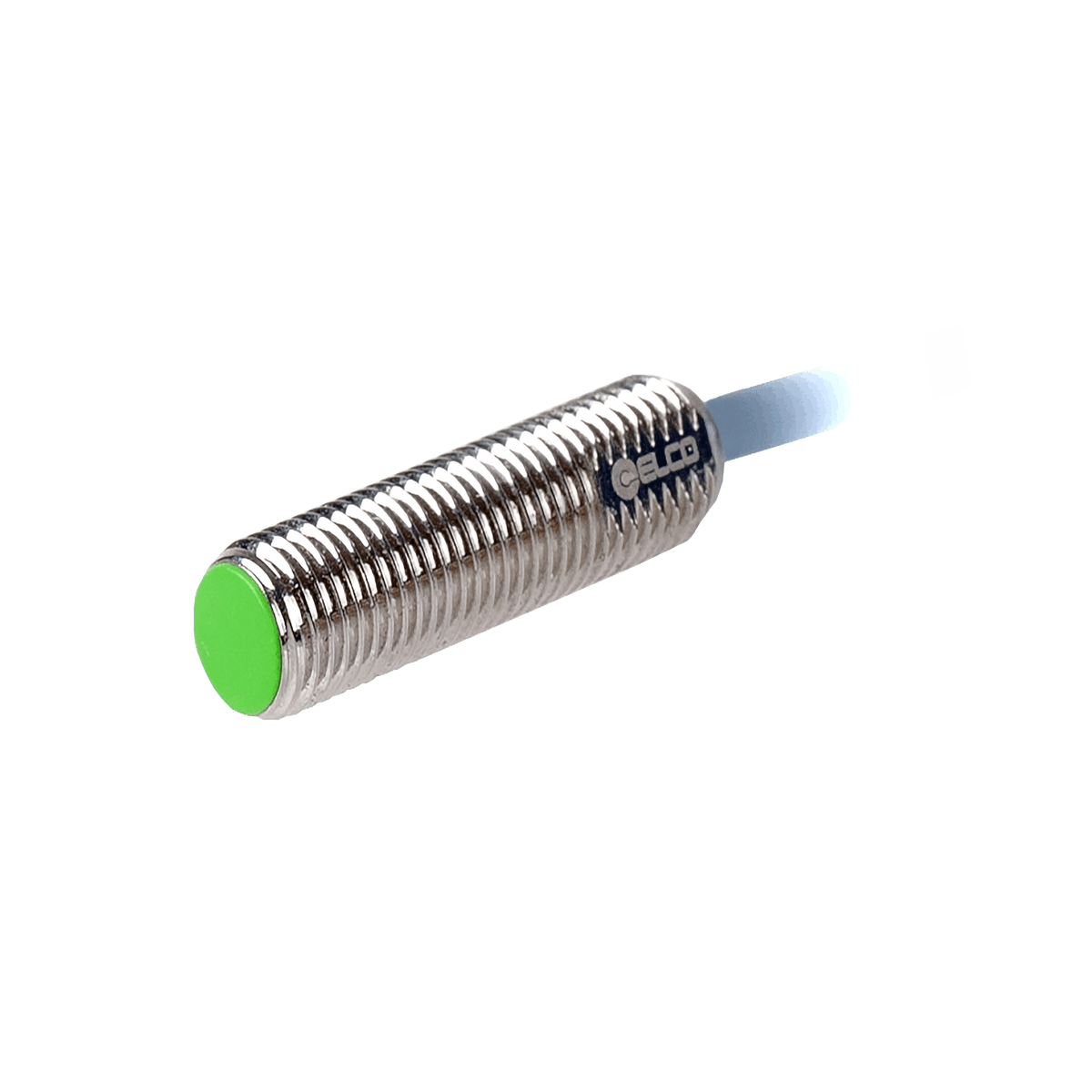

FI2-G08-CN6L Inductive Sensor
$42.96
- Cable length
- 2 m
- Sensing range
- 2 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M8, Switching distance 2 mm, Flush, IP68, -30 ... 85 °C, 10 ... 30 V DC, NPN NC, 2 m cable
Specifications
MPN FI2-G08-CN6L
| Connection | Cable |
|---|---|
| Cable type | PVC |
| Cable length | 2 m |
| IP rating | IP68 |
| Housing material | Stainless steel |
| Ambient temperature | -30 … +85 ℃ |
| Sensing range | 2 mm |
| Sensing surface material | PBT |
| Switching frequency | 1000 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 200 mA |
| Output status | NC |
| External dimensions | M8 x 1 |
| Output type | NPN |
| Mounting | Flush |
| Product size | M8 x 31 mm |
