ELCO

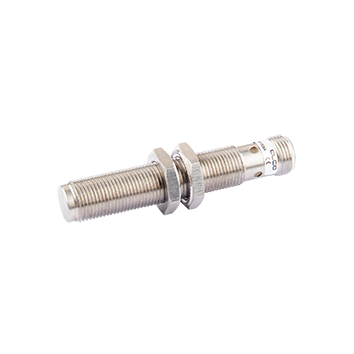

FI2-AM12-OP6L-Q12 Inductive Sensor
$69.05
- Sensing range
- 2 mm
- Output type
- PNP
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, All metal packaging, Stainless steel cylindrical housing M12, Switching distance 2 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, PNP NO, M12 connector
Specifications
MPN FI2-AM12-OP6L-Q12
| IP rating | IP67 |
|---|---|
| Connection | M12, 4-pin |
| Ambient temperature | -25 … +70 ℃ |
| Switching frequency | 200 Hz |
| Output status | NO |
| Supply voltage | 10 ... 30 V DC |
| Sensing surface material | Stainless steel |
| Mounting | Flush |
| Sensing range | 2 mm |
| Output type | PNP |
| Load current | ≤ 200 mA |
| Housing material | Stainless steel |
| External dimensions | M12 x 1 |
| Product size | M12 x 69 mm |
