ELCO

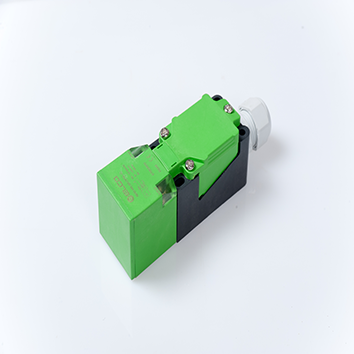

FI15-WL40-VA41L-Q/TB40 Inductive Sensor
$172.96
- Sensing range
- 15 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, Low temperature resistant type, Rectangular housing WL40, Switching distance 15 mm, Flush, IP67, -40 ... 70 °C, 20 ... 250V/AC/DC, 4-wire AC/DC, NC+NO, Screw terminals
Specifications
MPN FI15-WL40-VA41L-Q/TB40
| Connection | Terminal |
|---|---|
| IP rating | IP67 |
| Housing material | PA |
| External dimensions | Square |
| Mounting | Flush |
| Ambient temperature | -40 … +70 ℃ |
| Sensing surface material | PA |
| Sensing range | 15 mm |
| Switching frequency | 20 Hz |
| Supply voltage | 20 ... 250 V AC/DC |
| Output status | NO + NC |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output type | DC / AC |
| Product size | 115 x 40 x 40 mm |
