ELCO

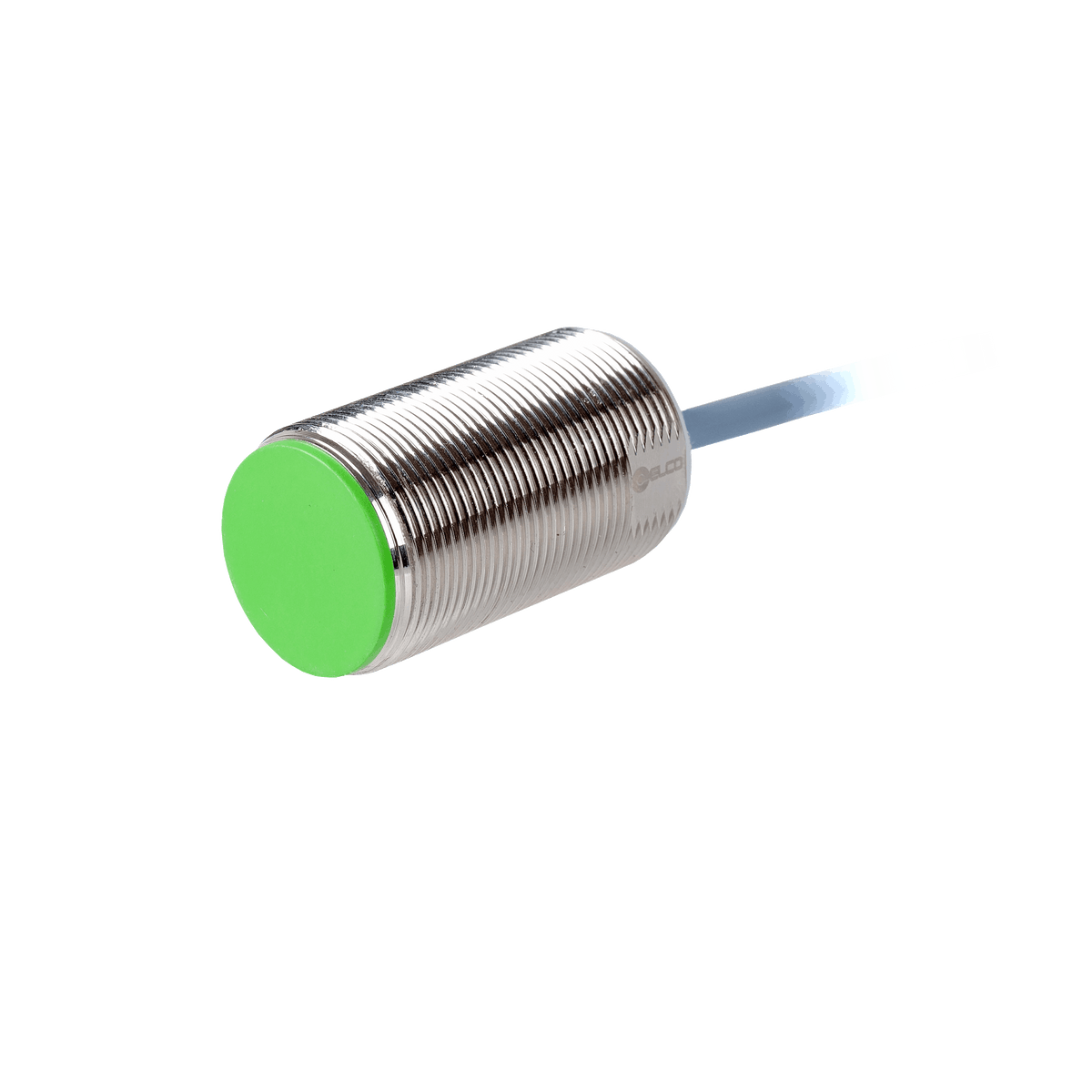

FI15-G30-CA41L Inductive Sensor
$85.92
- Cable length
- 2 m
- Sensing range
- 15 mm
- Output type
- DC / AC
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, G-series high-performance type, Threaded cylindrical housing M30, Switching distance 15 mm, Flush, IP68, -30 ... 85 °C, 20 ... 250 V AC/DC, 2 - wire AC/DC, NC, 2 m cable
Specifications
MPN FI15-G30-CA41L
| Cable type | PVC |
|---|---|
| Connection | Cable |
| External dimensions | M30 x 1.5 |
| Sensing range | 15 mm |
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 40 Hz |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -30 … +85 ℃ |
| Load current | ≤ 200 mA |
| Output type | DC / AC |
| Mounting | Flush |
| Product size | M30 x 59 mm |
| Cable length | 2 m |
| IP rating | IP68 |
| Output status | NC |
