ELCO

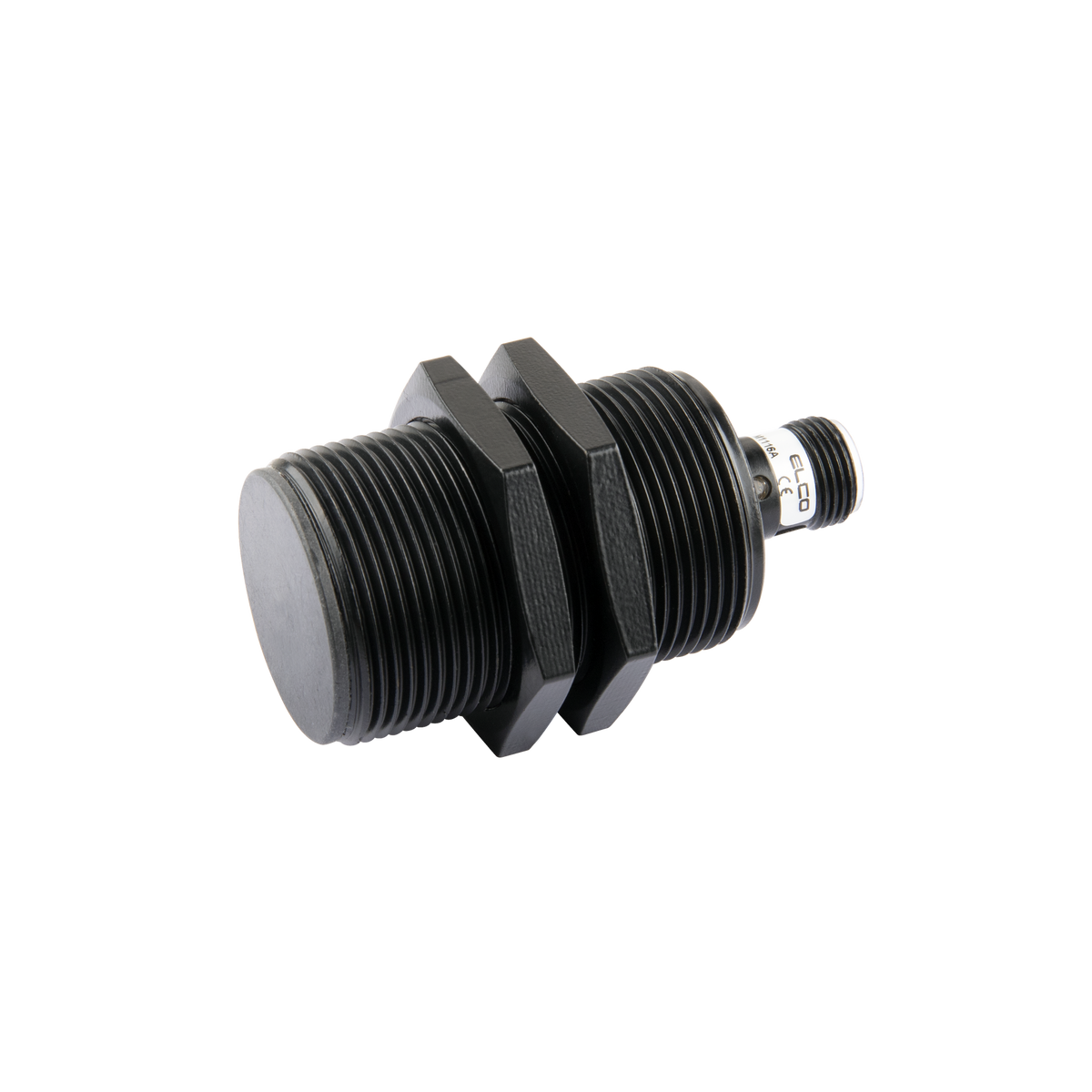

FI10-TM30-CN6L-Q12 Inductive Sensor
$125.61
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensor, Threaded cylindrical housing M30, PTFE-coated , Switching distance 10mm, flush, IP67, -25...70°C, NPN NC, M12 connector
Specifications
MPN FI10-TM30-CN6L-Q12
| Series | TM Series |
|---|---|
| Feature | Non-stick coated |
| Design | Thread design M30 |
| Switching distance | 10 mm |
| Installation type | flush |
| Output | NPN normally closed contact |
| Switching frequency | 400 Hz |
| Connection type | M12 plug, 3-pin |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | M30 x 62 mm |
| Housing material | PTFE-coated |
| Ambient temperature | -25 ... +70 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
