ELCO

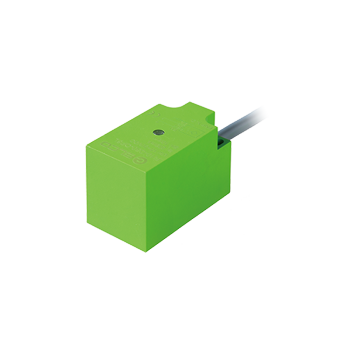

FI10-Q30-OA41L Inductive Sensor
$66.31
- Cable length
- 2 m
- Sensing range
- 10 mm
- Output type
- DC / AC
- Supply voltage
- 20 ... 250 V AC/DC
Product information
Technical details
Inductive Sensors, Square Series, Rectangular housing Q30, Switching distance 10 mm, Flush, IP67, -25 ... 70 °C, 20 ... 250 V AC/DC, 2 - wire AC/DC, NO, 2 m cable
Specifications
MPN FI10-Q30-OA41L
| Supply voltage | 20 ... 250 V AC/DC |
|---|---|
| External dimensions | Square |
| Output status | NO |
| Sensing range | 10 mm |
| Load current | DC ≤ 100 mA / AC ≤ 200 mA |
| Output type | DC / AC |
| Mounting | Flush |
| Product size | 52 x 30 x 30 mm |
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Cable length | 2 m |
| Connection | Cable |
| Housing material | ABS + PBT |
| Sensing surface material | ABS + PBT |
| Switching frequency | 20 Hz |
| IP rating | IP67 |
