ELCO

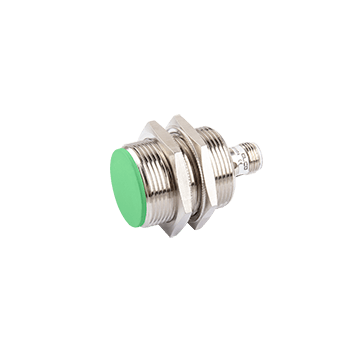

FI10-M30S-BN6L-Q12 Inductive Sensor
$64.61
- Sensing range
- 10 mm
- Output type
- NPN
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Inductive Sensors, M-series cylindrical type, Threaded cylindrical short housing M30, Switching distance 10 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, NPN NO/NC, M12 connector
Specifications
MPN FI10-M30S-BN6L-Q12
| Connection | M12, 4-pin |
|---|---|
| Housing material | Nickel-plated brass |
| Sensing surface material | PBT |
| Switching frequency | 400 Hz |
| Output status | NO + NC |
| Sensing range | 10 mm |
| IP rating | IP67 |
| Product size | M30 x 51.5 mm |
| Supply voltage | 10 ... 30 V DC |
| Ambient temperature | -25 … +70 ℃ |
| Load current | ≤ 200 mA |
| External dimensions | M30 x 1.5 |
| Output type | NPN |
| Mounting | Flush |
