ELCO

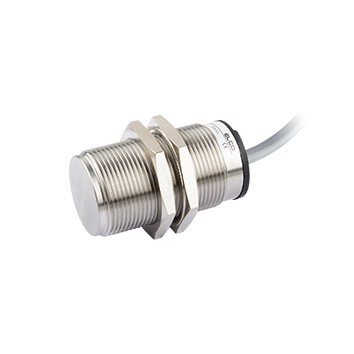

FI10-AM30-OD6L Inductive Sensor
$118.39
- Cable length
- 2 m
- Sensing range
- 10 mm
- Output type
- DC
- Supply voltage
- 10 ... 30 V DC
Product information
Technical details
Inductive Sensors, All metal packaging, Stainless steel cylindrical housing M30, Switching distance 10 mm, Flush, IP67, -25 ... 70 °C, 10 ... 30 V DC, 2 - wire DC, NO, 2 m cable
Specifications
MPN FI10-AM30-OD6L
| Sensing range | 10 mm |
|---|---|
| Cable type | PVC |
| Ambient temperature | -25 … +70 ℃ |
| Connection | Cable |
| IP rating | IP67 |
| Housing material | Stainless steel |
| Sensing surface material | Stainless steel |
| Switching frequency | 100 Hz |
| Supply voltage | 10 ... 30 V DC |
| Load current | ≤ 100 mA |
| Output status | NO |
| Output type | DC |
| External dimensions | M30 x 1 |
| Mounting | Flush |
| Product size | M30 x 55 mm |
| Cable length | 2 m |
