ELCO

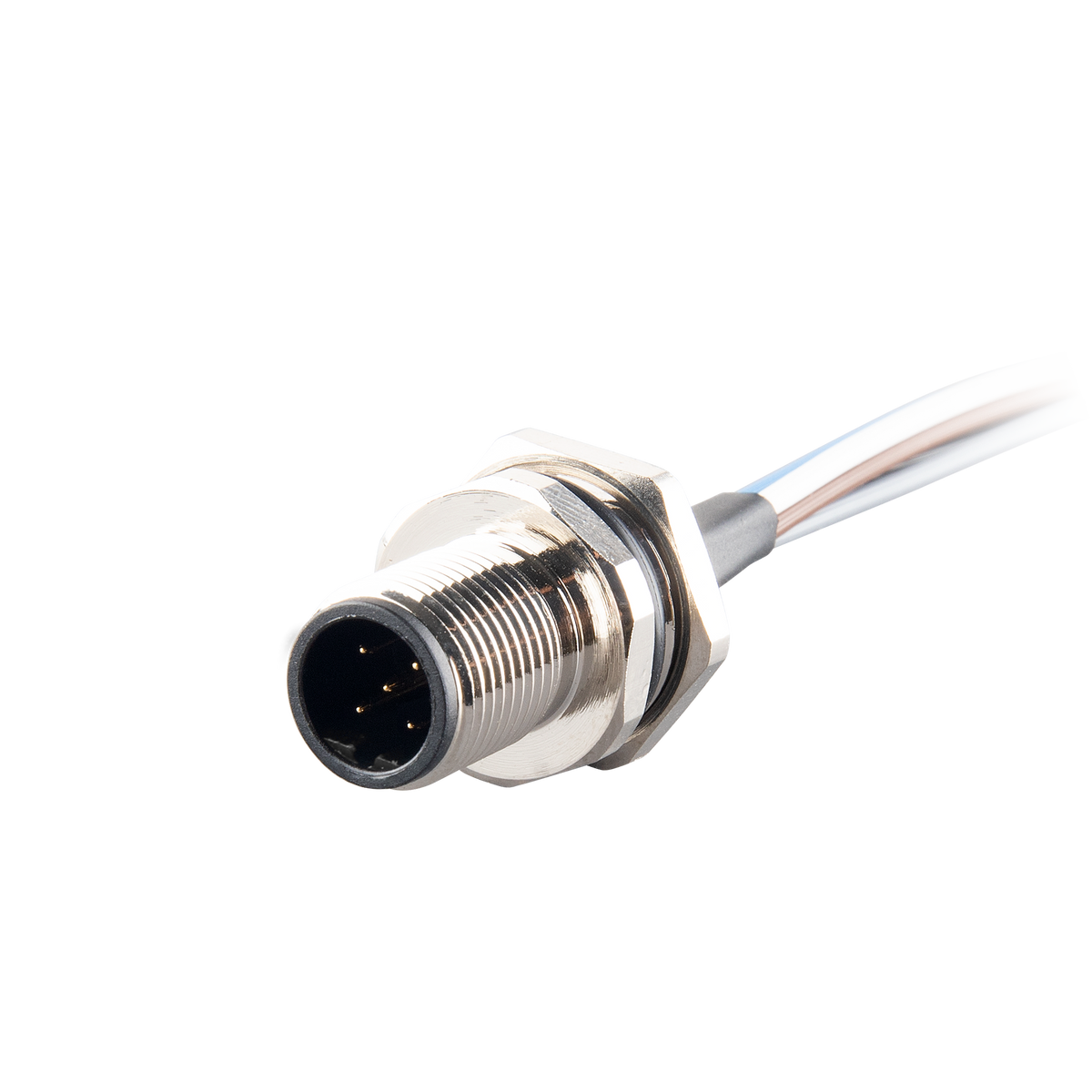

F12.5-0.5/M16/F-BC Receptacle
$18.27
- Connector
- M12, plug, 5-pin, straight
- Coding
- B-coded
- Cable length
- 0.50 m
- IP rating
- IP67
Product information
Technical details
Flange Connector Male, M12, 5-pole, b-coded, front panel installation PVC 5x0.34mm², 0.5m
Specifications
MPN F12.5-0.5/M16/F-BC
| Head design 1 | M12, plug, 5-pin, straight |
|---|---|
| Coding | B-coded |
| Mounting type | M16 front wall |
| Use case | I/O Connector |
| Cable type | PVC |
| Cable cross-section | 0.34 mm² |
| Cable length [m] | 0.50 |
| Shielding | unshielded |
| Connection type | Strands |
| Ambient temperature | -25 ... +90 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
