ELCO

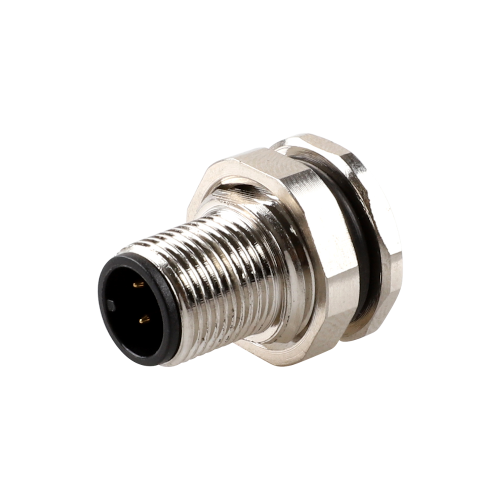

F12.4-0/M16 Receptacle
$16.31
- Connector
- M12, plug, 4-pin, straight
- Coding
- A-coded
- IP rating
- IP67
Product information
Technical details
Flange Connector Male, M12, 4-pole, rear panel installation solder contacts
Specifications
MPN F12.4-0/M16
| Head design 1 | M12, plug, 4-pin, straight |
|---|---|
| Coding | A-coded |
| Mounting type | M16 rear wall |
| Use case | I/O Connector |
| Shielding | unshielded |
| Connection type | Solder cups |
| Ambient temperature | -25 ... +90 °C |
| Protection class | IP67 |
| Certificates | UL, CE, RoHS, REACH |
