ELCO

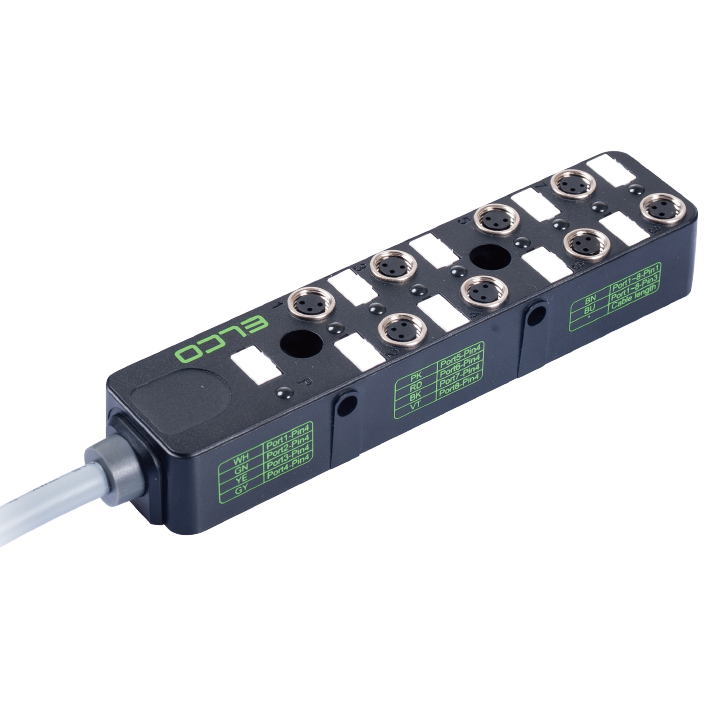

ESP8-8-3N-15/P Passive Distribution Box
$298.30
- Cable length
- 15.00 m
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Passive Distribution Box Base module with pre-wired cable 8xM8, 4-pole, 24VDC, NPN, LED, 15m PUR/PP
Specifications
MPN ESP8-8-3N-15/P
| Mounting type | Screw mounting |
|---|---|
| Connection I/O slots | 8 x M8, socket, 4-pin |
| Number of channels per slot | 2 |
| Cable type | PUR |
| Cable length [m] | 15.00 |
| Wiring | NPN |
| Connection type | Management |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | 130 x 30 x 20 mm |
| Output current max. per channel | 2 A |
| Output current max. sum | 8 A |
| Housing material | Plastic (PC/ABS) |
| Ambient temperature | -40 ... +80 °C |
| Protection class | IP67 |
| Certificates | UL, CE, RoHS, REACH |
