ELCO

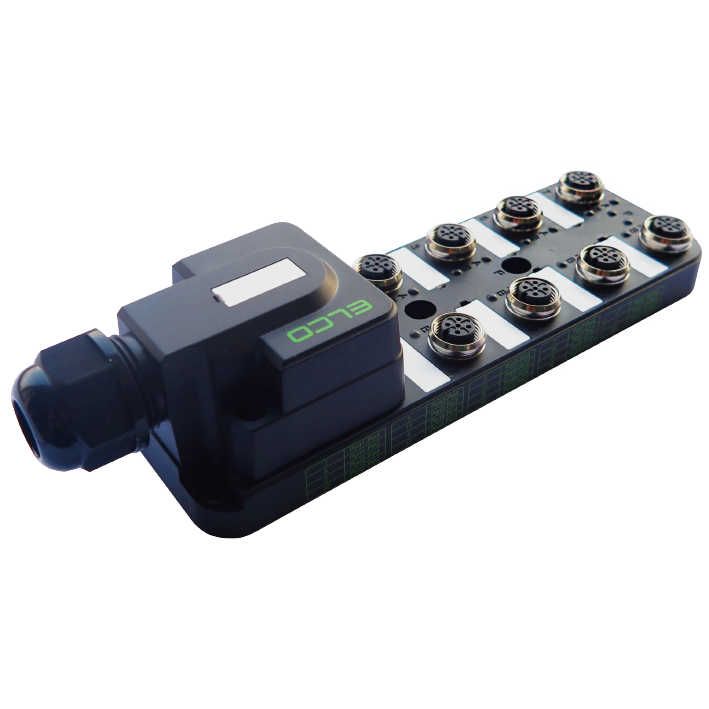

ESP8-12-4A-Q Passive Distribution Box
$151.05
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Passive Distribution Box Base module with plugable outlet 8xM12, 5-pole, 24VDC, without LED for analogue sensors
Specifications
MPN ESP8-12-4A-Q
| Mounting type | Screw mounting |
|---|---|
| Connection I/O slots | 8 x M12, socket, 5-pin, A-coded |
| Number of channels per slot | 2 |
| Wiring | Analogue |
| Connection type | Terminal with cable gland |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | 165 x 55 x 42 mm |
| Output current max. per channel | 2 A |
| Output current max. sum | 16 A |
| Housing material | Plastic (PC/ABS) |
| Ambient temperature | -40 ... +80 °C |
| Protection class | IP67 |
| Certificates | CE, RoHS, REACH |
