ELCO

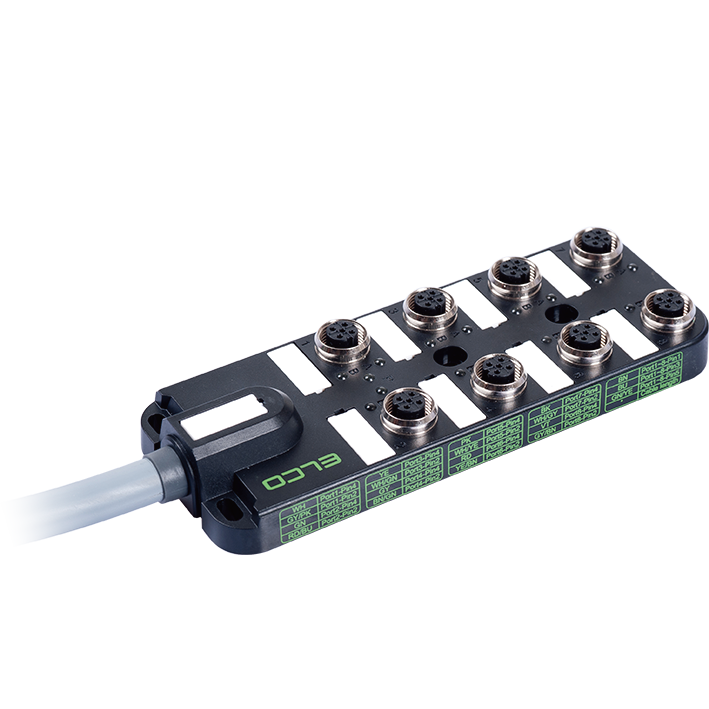

ESP8-12-2P-1/P Passive Distribution Box
$105.61
- Cable length
- 1.00 m
- Supply voltage
- 10 ... 30 V DC
- IP rating
- IP67
Product information
Technical details
Passive Distribution Box Base module with pre-wired cable 8xM12, 4-pole, 24VDC, PNP, LED, 1m PUR/PP
Specifications
MPN ESP8-12-2P-1/P
| Mounting type | Screw mounting |
|---|---|
| Connection I/O slots | 8 x M12, socket, 4-pin, A-coded |
| Number of channels per slot | 1 |
| Cable type | PUR |
| Cable length [m] | 1.00 |
| Wiring | PNP |
| Connection type | Management |
| Operating voltage | 10 ... 30 V DC |
| Dimensions | 145 x 55 x 20 mm |
| Output current max. per channel | 2 A |
| Output current max. sum | 8 A |
| Housing material | Plastic (PC/ABS) |
| Ambient temperature | -40 ... +80 °C |
| Protection class | IP67 |
| Certificates | UL, CE, RoHS, REACH |
