ELCO

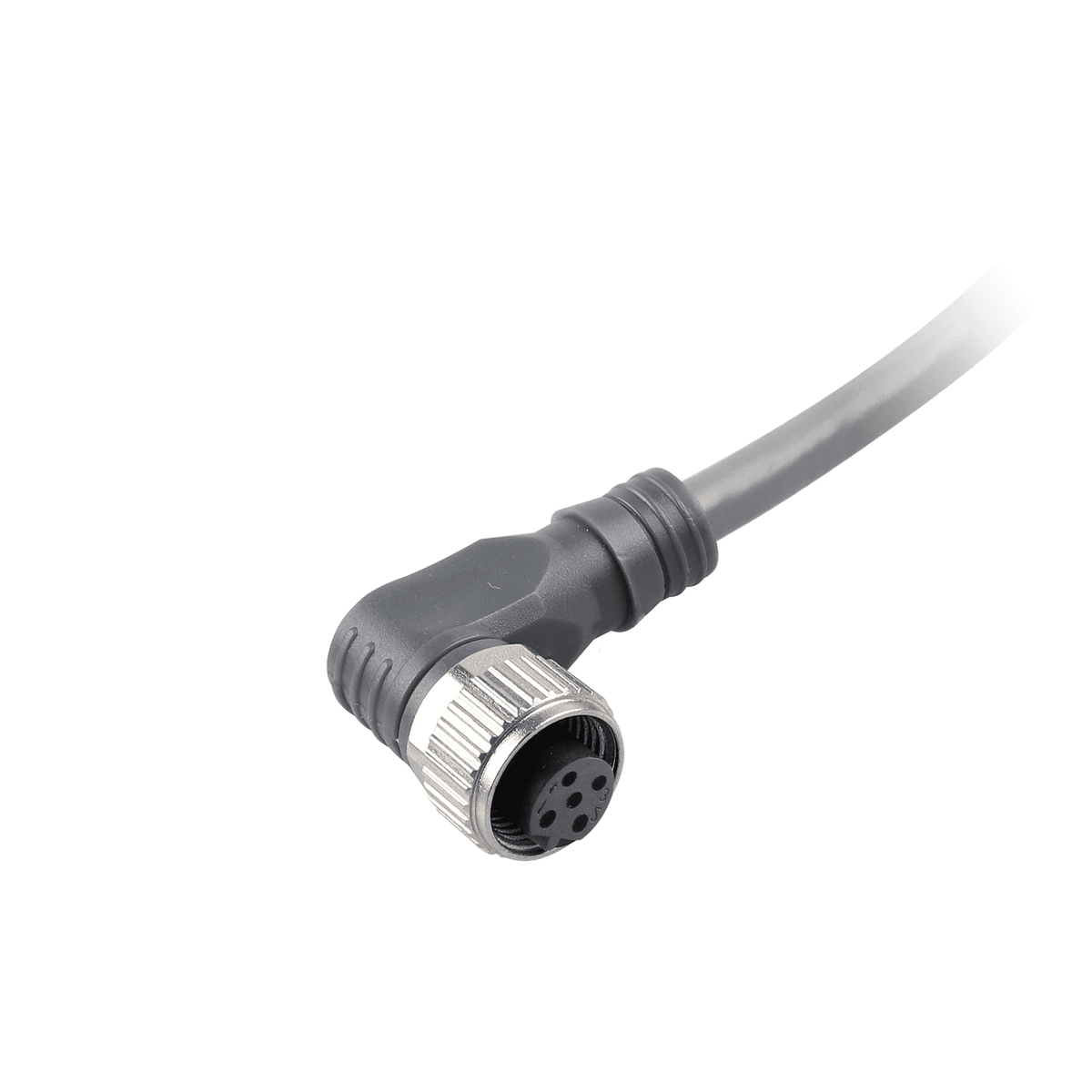

CBO12.5-4/P Sensor-Actuator Cordset
$26.09
- Connector
- M12
- Coding
- A-code
- Cable length
- 4 m
- IP rating
- IP67
Product information
Technical details
Sensor-Actuator Cordset, Single-end, M12 A-code 5-pin Angled Female, With PUR grey jacket 5 × 0.34 mm² (22 AWG) 5 million bending cycles Cable, 4 m
Specifications
MPN CBO12.5-4/P
| Product type | Sensor-Actuator Cordset |
|---|---|
| Termination type | Single-end |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 5 |
| Head 1 Shape | Angled |
| Head 1 Gender | Female |
| The head material | TPU |
| Nut/bolt material | Zinc die casting |
| Coating contact material | Gold plated copper |
| Material contact | TPU |
| Rated voltage | 60 V AC/DC |
| Rated current | 4 A |
| Wire cross-section | 0.34 mm² (22 AWG) |
| LED indicator | NO |
| Cable jacket material | PUR |
| Cable jacket color | grey |
| Wire insulation material | PP |
| Wire insulation color | BN, WH, BU, BK,GY |
| Shielded/Unshielded | NO |
| Drag chain | 5 million bending cycles |
| Resistant to welding sparks | NO |
| Flex & Torsion | NO |
| IP rating | IP67 |
| Cable length | 4 m |
