ELCO
C8.4-8 Sensor-Actuator Cordset
$16.57
- Connector
- M8
- Coding
- A-code
- Cable length
- 8 m
- IP rating
- IP67
Product information
Technical details

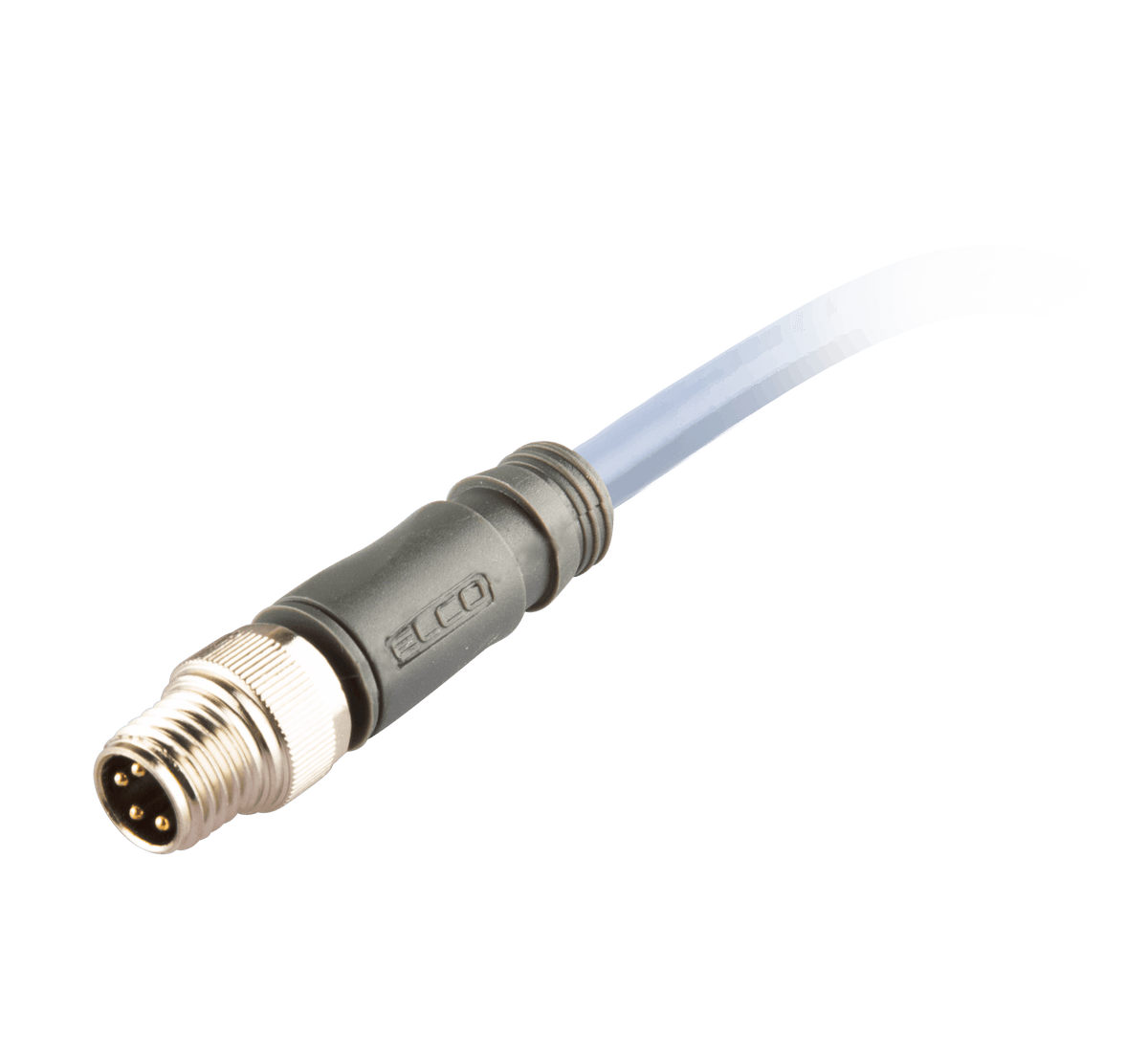

Sensor-Actuator Cordset, Single-end, M8 A-code 4-pin Straight Male, With PVC grey jacket 4 × 0.25 mm² (24 AWG) Cable, 8 m
Specifications
MPN C8.4-8
| IP rating | IP67 |
|---|---|
| Wire insulation material | PVC |
| Wire insulation color | BN, WH, BU, BK |
| Nut/bolt material | Zinc die casting |
| Cable jacket material | PVC |
| Cable length | 8 m |
| Coating contact material | Gold plated copper |
| LED indicator | NO |
| The head material | TPU |
| Cable jacket color | grey |
| Shielded/Unshielded | NO |
| Drag chain | Fixed installation |
| Rated voltage | 30 V AC/DC |
| Rated current | 4 A |
| Material contact | TPU |
| Wire cross-section | 0.25 mm² (24 AWG) |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Termination type | Single-end |
| Head 1 Type | M8 |
| Product type | Sensor-Actuator Cordset |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 4 |
| Head 1 Gender | Male |
| Head 1 Shape | Straight |
