ELCO

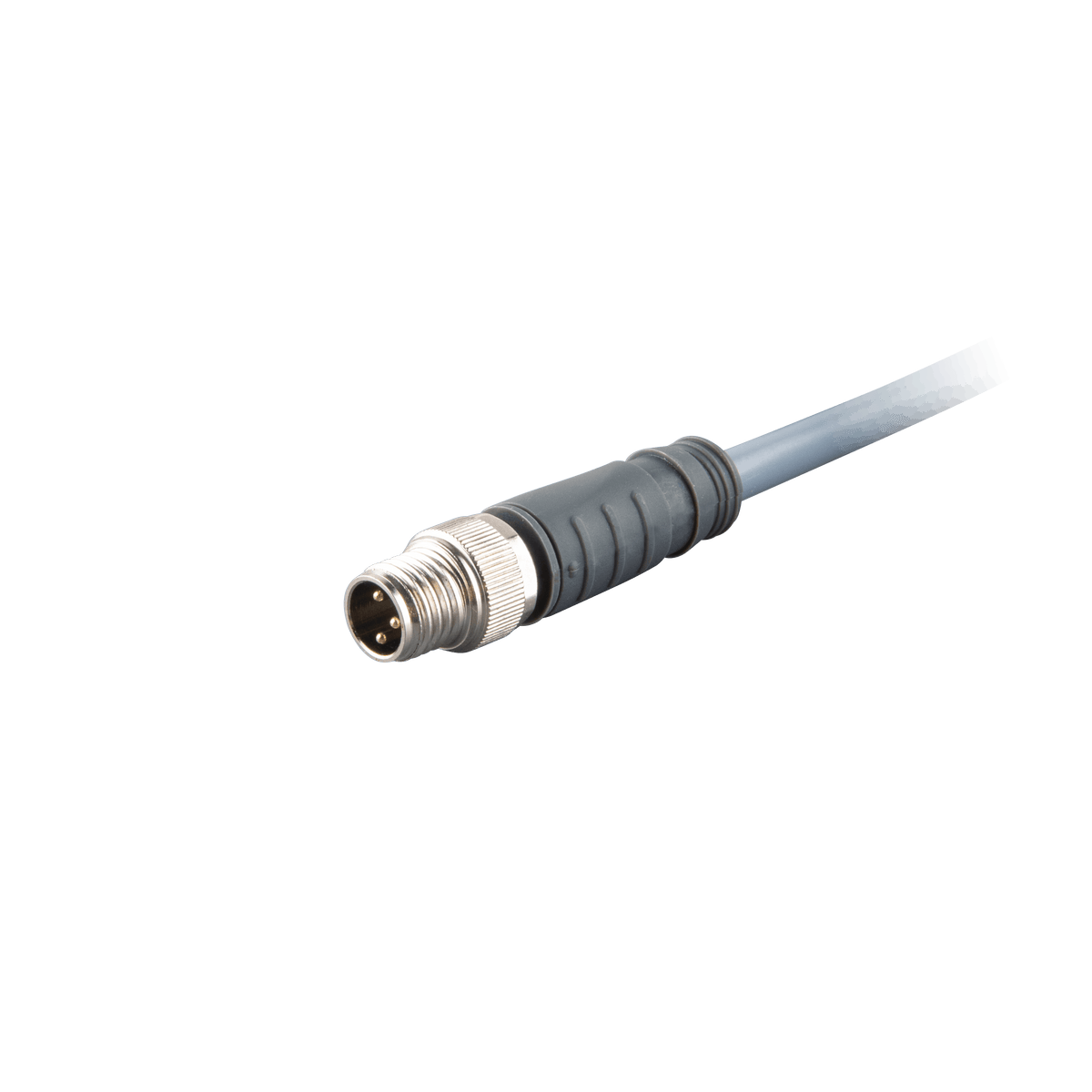

C8.3-2/P Sensor-Actuator Cordset
$12.70
- Connector
- M8
- Coding
- A-code
- Cable length
- 2 m
- IP rating
- IP67
Product information
Technical details
Sensor-Actuator Cordset, Single-end, M8 A-code 3-pin Straight Male, With PUR grey jacket 3 × 0.25 mm² (24 AWG) 5 million bending cycles Cable, 2 m
Specifications
MPN C8.3-2/P
| Drag chain | 5 million bending cycles |
|---|---|
| IP rating | IP67 |
| Nut/bolt material | Zinc die casting |
| Shielded/Unshielded | NO |
| Material contact | TPU |
| The head material | TPU |
| LED indicator | NO |
| Coating contact material | Gold plated copper |
| Cable jacket material | PUR |
| Wire insulation material | PP |
| Wire insulation color | BN, BU, BK |
| Cable length | 2 m |
| Cable jacket color | grey |
| Rated voltage | 60 V AC/DC |
| Rated current | 4 A |
| Wire cross-section | 0.25 mm² (24 AWG) |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Product type | Sensor-Actuator Cordset |
| Termination type | Single-end |
| Head 1 Type | M8 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 3 |
| Head 1 Gender | Male |
| Head 1 Shape | Straight |
