ELCO
C12.8-8/WS Sensor-Actuator Cordset
$68.48
- Connector
- M12
- Coding
- A-code
- Cable length
- 8 m
- IP rating
- IP67
Product information
Technical details

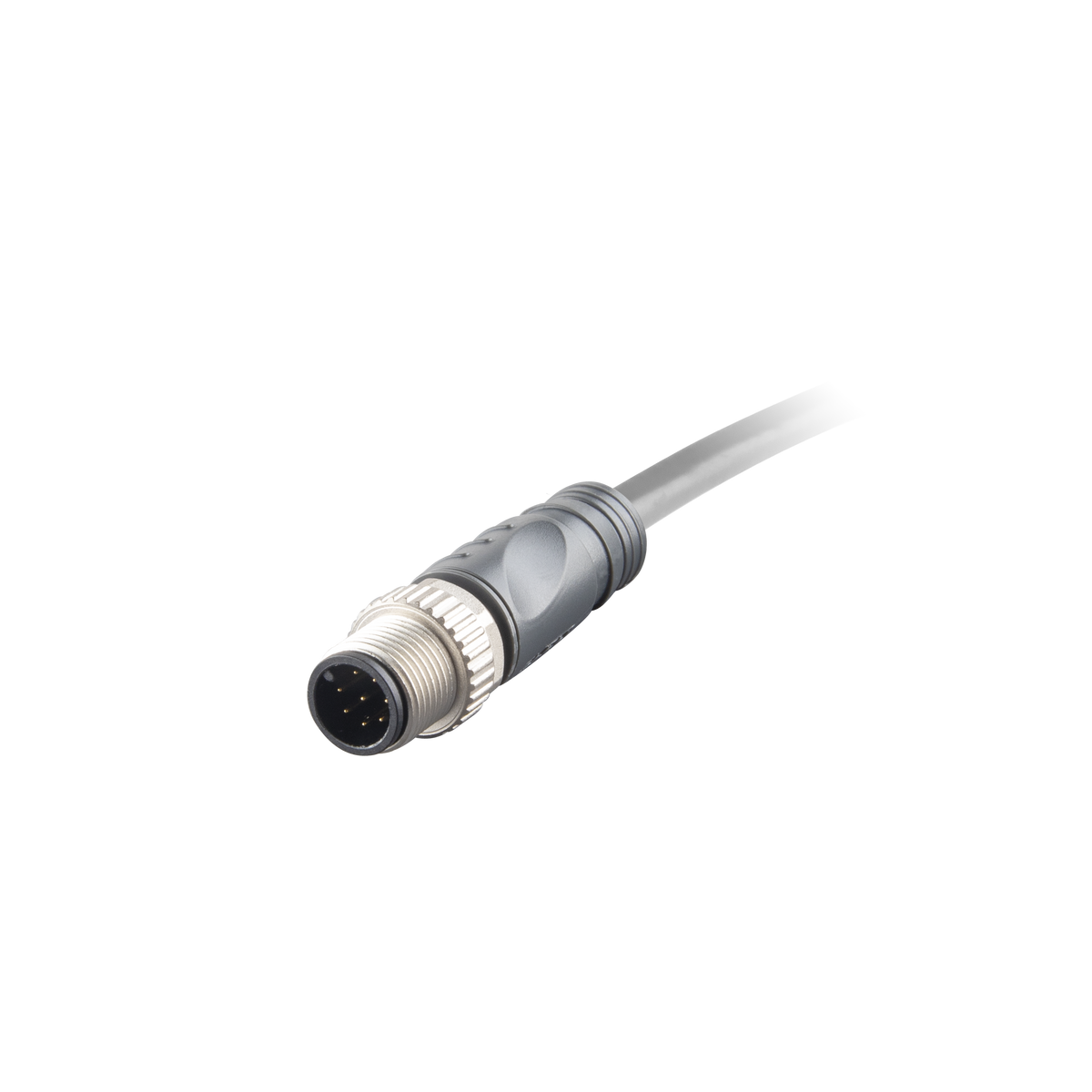

Sensor-Actuator Cordset, Single-end, M12 A-code 8-pin Straight Male, With PVC grey jacket 8 × 0.25 mm² (24 AWG) Shielded Cable, 8 m
Specifications
MPN C12.8-8/WS
| LED indicator | NO |
|---|---|
| Cable length | 8 m |
| Nut/bolt material | Zinc die casting |
| Wire insulation color | WH, BN, GN, YE, GY, PK, BU, RD |
| IP rating | IP67 |
| Wire insulation material | PVC |
| Cable jacket material | PVC |
| The head material | TPU |
| Shielded/Unshielded | YES |
| Coating contact material | Gold plated copper |
| Material contact | TPU |
| Cable jacket color | grey |
| Flex & Torsion | NO |
| Resistant to welding sparks | NO |
| Drag chain | Fixed installation |
| Wire cross-section | 0.25 mm² (24 AWG) |
| Rated voltage | 30 V AC/DC |
| Rated current | 2 A |
| Product type | Sensor-Actuator Cordset |
| Termination type | Single-end |
| Head 1 Type | M12 |
| Head 1 Coding | A-code |
| Head 1 Number of contacts | 8 |
| Head 1 Shape | Straight |
| Head 1 Gender | Male |
