ELCO

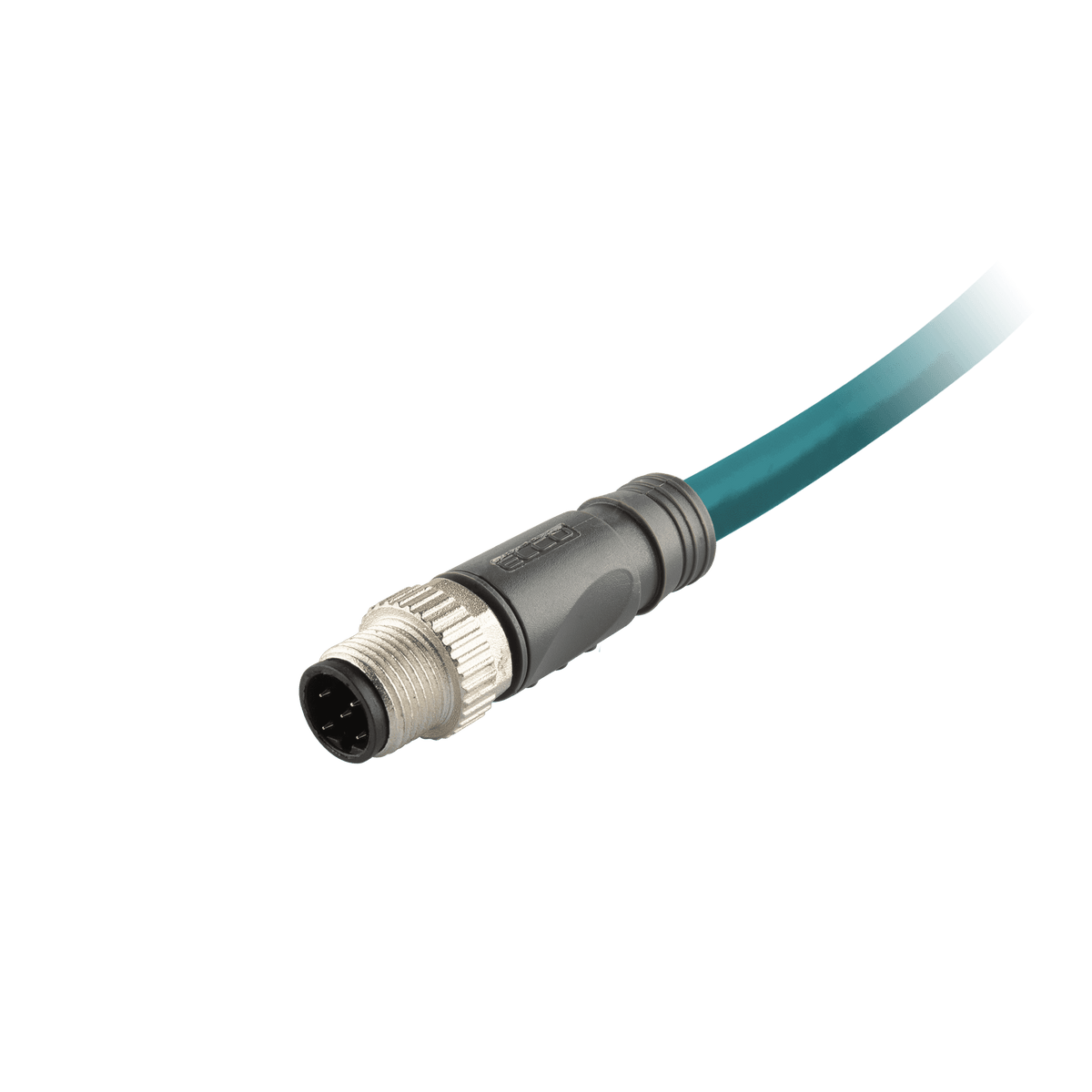

B05S06PP8M050 Single-ended Fieldbus Cordset
$201.04
- Coding
- B-code
- Cable length
- 5 m
- IP rating
- IP67
Product information
Technical details
Profibus Cordset, Single-ended, M12 B-coded 2-pin Male Straight, with PUR blue jacket 2x 24 AWG 5 million bending cycles Cable, 5m
Specifications
MPN B05S06PP8M050
| Coding | B-code |
|---|---|
| Shape | Straight |
| Connector type | M12 |
| Nut/bolt material | Zinc die casting |
| Number of contacts | 5 |
| The head material | TPU |
| Material contact | TPU |
| Cable jacket material | PUR |
| Wire insulation material | PVC |
| Wire insulation color | GN, RD |
| Shielded/Unshielded | YES |
| Drag chain | 5 million bending cycles |
| Cable length | 5 m |
| IP rating | IP67 |
| Cable jacket color | blue |
| Coating contact material | Gold-plated copper |
| Rated voltage | 250 V AC/DC |
| Gender | Male |
| LED indicator | NO |
| Rated current | 4 A |
| Wire cross-section | 2 × 24 AWG |
